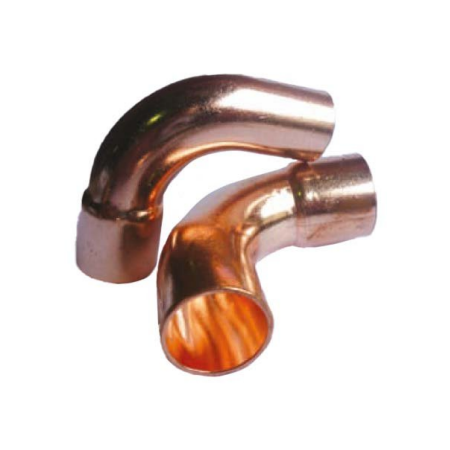

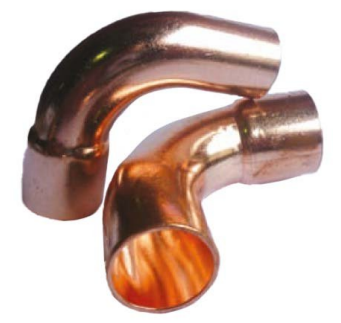

Copper Elbow 90 Degree 1/2 Inch | High-Quality Copper | R-410A & CO2 Rated | by Aspen Pumps
The Copper Elbow 90 Degree 1/2 Inch is designed for HVAC refrigeration systems, featuring high-quality copper construction and a pressure rating suitable for CO2 and R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in high-pressure applications. Ideal for both commercial and residential installations, this fitting is built to last and minimize refrigerant leaks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree 1/2 Inch | High-Quality Copper | R-410A & CO2 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 102-0808
Alternatively Known As: Copper Elbow 90 Degree 1/2 Inch, Refrigeration Copper Fitting, HVAC Copper Elbow, R-410A Copper Elbow
Technical Specifications
- Material: High-quality copper
- Pressure rating: CO2 60 Bar, R-410A high pressure rated
- Compliance: Exceeds ISO/AS 5149.2 standards
- Manufacturing: ISO9001 accredited facility
- Testing: Batch verification burst testing
- Installation: Recommended 15% silver solder brazing
- Dimensions (H x L x W): 15mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Suitable for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to remove stress and fatigue focus points
- Recommended 15% silver solder for brazing in high pressure applications
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure applications.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- R-410A and CO2 refrigeration systems
- Commercial and residential refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- High-quality manufacturing reduces risk of refrigerant leaks, minimizing environmental impact
- Durable design extends system life, reducing waste and resource consumption
Warranty Information
Warranty details available upon request; product manufactured under strict quality control standards.
Available Now
Available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high pressure copper fittings.
