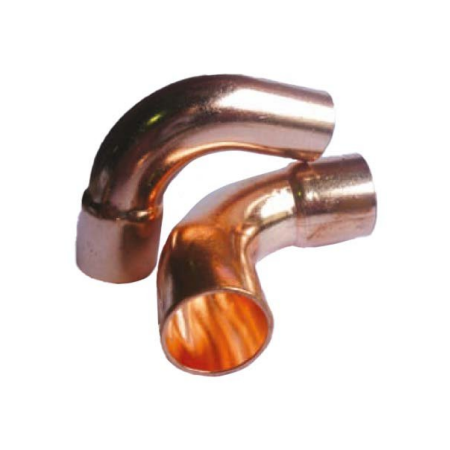

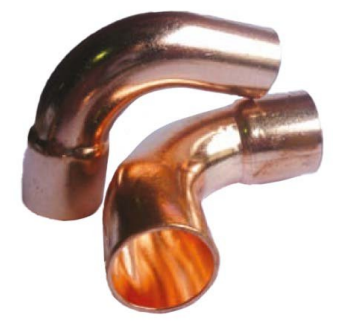

Copper Elbow 90 Degree 7/8 OD x 7/8 ID | High-Grade Copper | CO2 60 Bar Rated | by Aspen Pumps
The Copper Elbow 90 Degree 7/8 OD x 7/8 ID is designed for high-pressure refrigeration systems, featuring high-grade copper construction and a pressure rating of CO2 60 Bar. Ideal for HVAC installations using R-410A refrigerant, this fitting exceeds ISO/AS 5149.2 standards, ensuring durability and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree 7/8 OD x 7/8 ID | High-Grade Copper | CO2 60 Bar Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 102-1414
Alternatively Known As: Copper Elbow 90 Degree 7/8 Inch, Refrigeration Copper Elbow, HVAC Copper Fitting 7/8 OD x 7/8 ID
Technical Specifications
- Material: High-grade copper
- Pressure Rating: CO2 60 Bar, R-410A compatible
- Compliance: Exceeds ISO/AS 5149.2 standards
- Manufacturing: ISO9001 accredited facility
- Testing: Batch verification and burst testing performed
- Installation: Recommended 15% silver solder for brazing in high pressure applications
- Dimensions (H x L x W): 22mm x 30mm x 22mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked for R-410A and HP-60 for safety
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using recommended brazing techniques to ensure safety and performance.
Applications
- Refrigeration systems requiring high pressure copper fittings
- Air conditioning installations using R-410A refrigerant
- HVAC systems requiring durable and reliable copper elbow fittings
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration safety and performance
Environmental Benefits
- High-quality manufacturing reduces risk of refrigerant leaks, minimizing environmental impact
- Durable design extends product life, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° 7/8 OD x 7/8 ID is available for immediate purchase, ideal for refrigeration and HVAC system installations requiring high pressure copper fittings.
