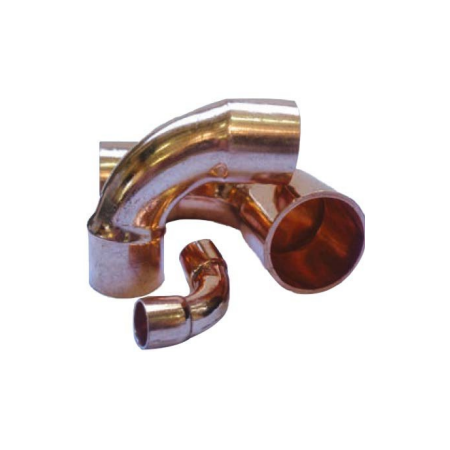

Copper Elbow 90 Degree Fitting | Rated for CO2 60 Bar | ISO9001 Certified | by Aspen Pumps
The Copper Elbow 90 Degree Fitting is designed for high-pressure HVAC and refrigeration systems, compatible with CO2 and R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and performance. Ideal for commercial and industrial applications, this fitting minimizes refrigerant leakage and enhances system durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree Fitting | Rated for CO2 60 Bar | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 103-1818-HP60
Alternatively Known As: Copper Elbow 90 Degree Fitting, High Pressure Copper Elbow, R-410A Copper Elbow, CO2 Refrigeration Copper Fitting
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant systems
- Manufactured and tested to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested for quality assurance
- Recommended use of 15% silver solder for brazing in high pressure applications
- Installation should follow AS HB40 methodology by qualified tradespeople
- Dimensions (H x L x W): 30mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety indicating R-410A and HP-60 rating
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 guidelines, using recommended brazing techniques to ensure safety and performance.
Applications
- HVAC systems requiring high pressure copper fittings
- Refrigeration systems using R-410A and CO2 refrigerants
- Commercial and industrial refrigeration and air conditioning installations
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration safety and performance
Environmental Benefits
- High durability reduces the need for frequent replacements, minimizing waste
- Designed to prevent refrigerant leakage, protecting the environment from harmful emissions
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° 1-1/8 ID x 1-1/8 ID HP60 is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
