Copper Elbow 90 Degree HP60 | CO2 Rated | R-410A Compatible | Exceeds ISO Standards | by Aspen Pumps

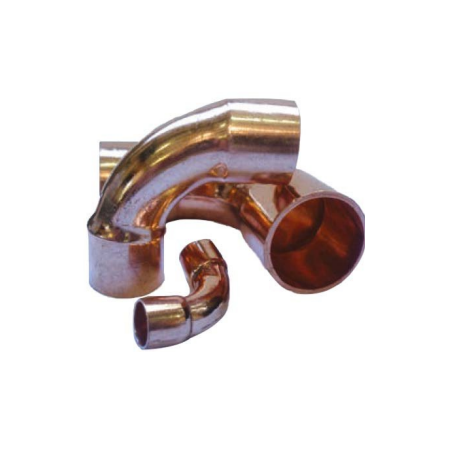

The Copper Elbow 90 Degree HP60 is designed for high-pressure HVAC and refrigeration systems, compatible with CO2 and R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring durability and safety. Ideal for commercial and industrial applications, this fitting minimizes refrigerant leakage and enhances system efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree HP60 | CO2 Rated | R-410A Compatible | Exceeds ISO Standards | by Aspen Pumps
Brand: Aspen Pumps
SKU: 103-2222-HP60
Alternatively Known As: Copper Elbow 90 Degree HP60, High Pressure Copper Elbow, R-410A Copper Fitting, CO2 Rated Copper Elbow
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant
- Exceeds ISO/AS 5149.2 standards as well as CE and UL certifications
- Manufactured in ISO9001 accredited facility
- Passed batch verification and burst testing
- Recommended use of 15% silver solder for brazing in high pressure applications
- Dimensions (H x L x W): 35mm x 35mm x 35mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked fittings for safety indicating R-410A and HP-60 rating
- Designed to remove stress and fatigue focus points for durability
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure pipework design avoids mechanical and thermal stress.
Applications
- HVAC systems requiring high pressure copper fittings
- Refrigeration systems using R-410A and CO2 refrigerants
- Commercial and industrial refrigeration and air conditioning installations
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Reduces risk of refrigerant leakage, minimizing environmental impact
- Manufactured to high standards to ensure long service life and reduce waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° HP60 is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
