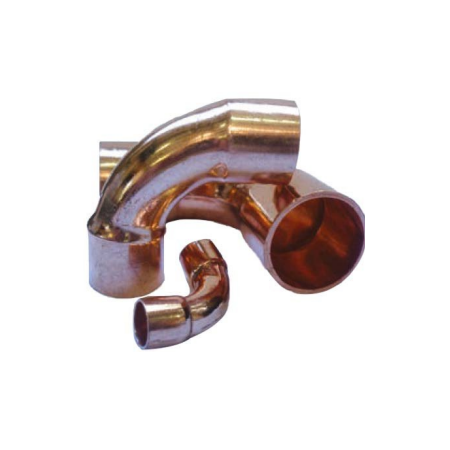

Copper Elbow 90 Degree | R-410A Compatible | ISO/AS 5149.2 Certified | by Aspen Pumps
The Copper Elbow 90 Degree fitting is designed for HVAC refrigeration systems, compatible with R-410A and HP-60 refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in high-pressure applications. Ideal for both commercial and residential air conditioning systems, this fitting minimizes mechanical and thermal stress, making it a top choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree | R-410A Compatible | ISO/AS 5149.2 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 103-4242
Alternatively Known As: Copper Elbow 90 Degree, Refrigeration Copper Fitting, R-410A Copper Elbow, High Pressure Copper Elbow
Technical Specifications
- Internal Diameter: 2-5/8 inches
- Compatible with R-410A and HP-60 refrigerants
- Exceeds ISO/AS 5149.2 standards
- Manufactured in ISO9001 accredited facility
- Batch verification burst tested
- Recommended 15% silver solder for brazing
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 67mm x 67mm x 67mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- CE and UL certified
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure mechanical and thermal stress is avoided in pipework design.
Applications
- HVAC refrigeration systems requiring R-410A and HP-60 rated copper fittings
- High pressure refrigerant piping installations
- Commercial and residential air conditioning and refrigeration systems
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk through superior design and manufacturing quality
- Supports efficient HVAC system operation, reducing energy waste
Warranty Information
Warranty terms as per Aspen Pumps standard policy; covers manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° fitting is available for immediate purchase, ideal for high pressure refrigeration and air conditioning systems.
