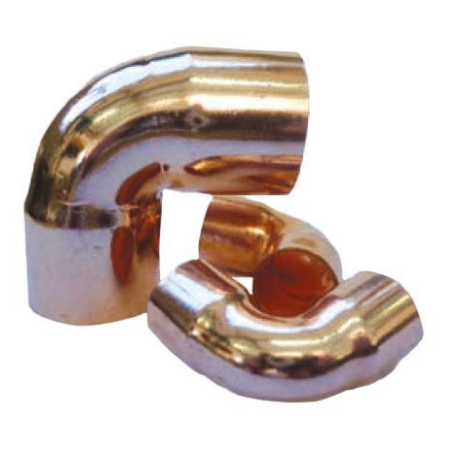

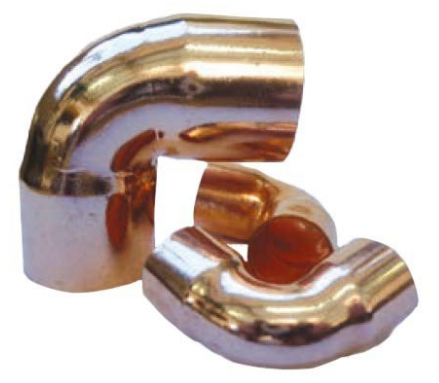

Copper Elbow 90 Degree Short Radius | ISO/AS 5149.2 Compliant | CO2 60 Bar Rated | by Aspen Pumps
The Copper Elbow 90 Degree Short Radius is designed for HVAC refrigeration systems, rated for CO2 60 Bar and R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in high-pressure applications. Ideal for both commercial and residential air conditioning installations, this fitting minimizes refrigerant leakage and extends system life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree Short Radius | ISO/AS 5149.2 Compliant | CO2 60 Bar Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 104-0606
Alternatively Known As: Copper Elbow 90 Degree Short Radius, Refrigeration Copper Fitting, HVAC Copper Elbow
Technical Specifications
- Compatible with CO2 60 Bar and R-410A refrigerants
- Exceeds ISO/AS 5149.2 standards
- Manufactured in ISO9001 accredited facility
- Batch verification burst tested
- Recommended 15% silver solder for brazing in high pressure applications
- Designed to avoid mechanical and thermal stress
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using 15% silver solder for brazing in high pressure systems.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- Commercial and residential air conditioning installations
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- High-quality fittings reduce refrigerant leakage, minimizing environmental impact
- Durable design extends system life, reducing waste and resource consumption
Warranty Information
Warranty terms as per Aspen Pumps standard product warranty policy.
Available Now
The Aspen Pumps SKY Copper Elbow 90° Short Radius 3/8 ID X 3/8 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
