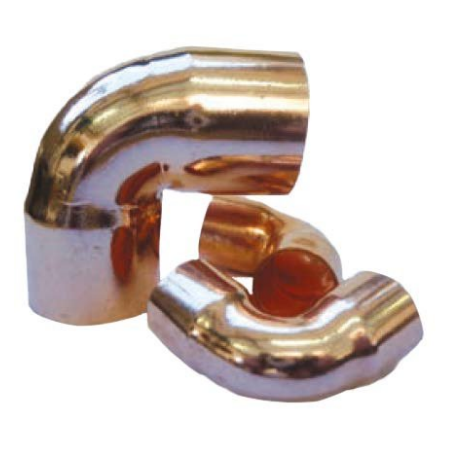

Copper Elbow 90 Degree Short Radius | ISO/AS 5149.2 Compliant | R-410A & CO2 Rated | by Aspen Pumps
The Copper Elbow 90 Degree Short Radius is designed for HVAC refrigeration systems, rated for R-410A and CO2 at 60 Bar pressure. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring durability and reliability in high-pressure applications. Ideal for both commercial and residential air conditioning installations, this fitting minimizes refrigerant leakage and extends system life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree Short Radius | ISO/AS 5149.2 Compliant | R-410A & CO2 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 104-0808
Alternatively Known As: Copper Elbow 90 Degree Short Radius, HVAC Copper Fitting, Refrigeration Copper Elbow
Technical Specifications
- Compatible with CO2 at 60 Bar pressure
- Suitable for R-410A refrigerant
- Manufactured and tested to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Passed batch verification burst testing
- Recommended 15% silver solder for brazing in high pressure applications
- Installation should follow AS HB40 guidelines
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points for durability
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure systems.
Applications
- HVAC refrigeration systems requiring high pressure copper fittings
- Commercial and residential air conditioning installations
- Refrigerant piping systems using R-410A and CO2
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- High-quality fittings reduce refrigerant leakage, minimizing environmental impact
- Durable design extends system life, reducing waste and resource consumption
Warranty Information
Warranty details available upon request; product manufactured to high-quality standards ensuring reliability.
Available Now
The Aspen SKY Copper Elbow 90° Short Radius 1/2 ID x 1/2 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
