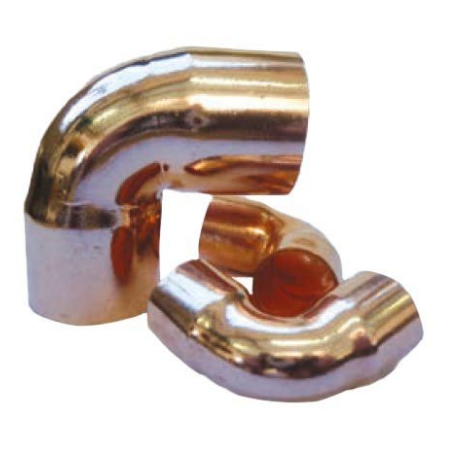

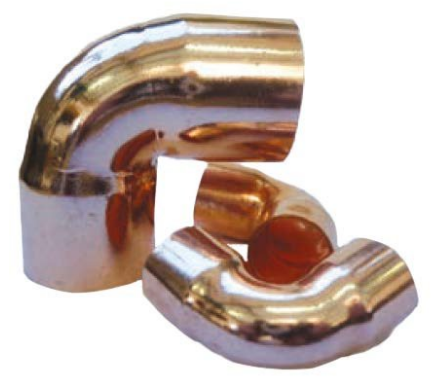

Copper Elbow 90 Degree Short Radius | R-410A & HP-60 Compatible | ISO9001 Certified | by Aspen Pumps
The Copper Elbow 90 Degree Short Radius is designed for HVAC and refrigeration systems, compatible with R-410A and HP-60 refrigerants. Manufactured under ISO9001 standards, it exceeds ISO/AS 5149.2 requirements, ensuring reliability and safety in high-pressure applications. Ideal for professional installations, this fitting minimizes refrigerant leakage risk and enhances system performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree Short Radius | R-410A & HP-60 Compatible | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 104-2626
Alternatively Known As: Copper Elbow 90 Degree Short Radius, HVAC Copper Fitting, Refrigeration Copper Elbow
Technical Specifications
- Compatible with R-410A and HP-60 refrigerants
- Exceeds ISO/AS 5149.2 standards
- Manufactured under ISO9001 quality management system
- Burst tested after brazing to simulate field conditions
- Recommended use of 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 42mm x 42mm x 42mm
- Weight: 0.2 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- CE and UL certified
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure mechanical and thermal stress is avoided in pipework design.
Applications
- HVAC systems requiring reliable copper fittings
- Refrigeration systems using R-410A and HP-60 refrigerants
- High-pressure copper pipe installations
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long-lasting performance and reduced waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Elbow 90° Short Radius is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-quality copper fittings.
