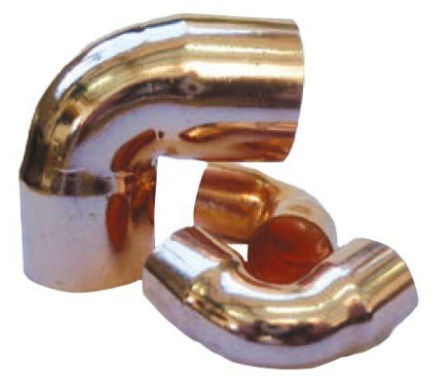

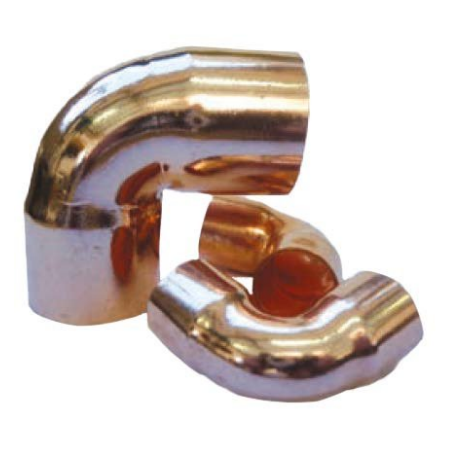

Copper Elbow 90 Degree Short Radius | R-410A & HP-60 Compatible | ISO9001 Certified | by Aspen Pumps
The Copper Elbow 90 Degree Short Radius is designed for HVAC refrigeration systems, ensuring reliable connections with R-410A and HP-60 refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards and is rigorously tested for quality assurance. Ideal for high-pressure refrigerant piping installations, this elbow fitting minimizes mechanical stress and enhances system performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Elbow 90 Degree Short Radius | R-410A & HP-60 Compatible | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 104-1818
Alternatively Known As: Copper Elbow 90 Degree Short Radius, HVAC Copper Fitting, Refrigeration Copper Elbow
Technical Specifications
- Compatible with R-410A and HP-60 refrigerants
- Exceeds ISO/AS 5149.2 standards as well as CE and UL certifications
- Manufactured in ISO9001 accredited facility
- Batch verification burst tested for quality assurance
- Recommended use of 15% silver solder for brazing
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 safety ratings
- Designed to remove stress and fatigue focus points
- Recommended 15% silver solder for brazing in high pressure applications
- Installation should follow AS HB40 methodology by qualified tradespeople
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 guidelines to ensure safety and performance.
Applications
- HVAC refrigeration systems requiring reliable copper fittings
- High pressure refrigerant piping installations
- R-410A and HP-60 rated refrigeration and air conditioning systems
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
- AS HB40 – Installation methodology for copper fittings
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Warranty details available upon request; product manufactured under strict quality controls to ensure reliability.
Available Now
The Aspen Pumps SKY Copper Elbow 90° Short Radius is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-quality copper fittings.
