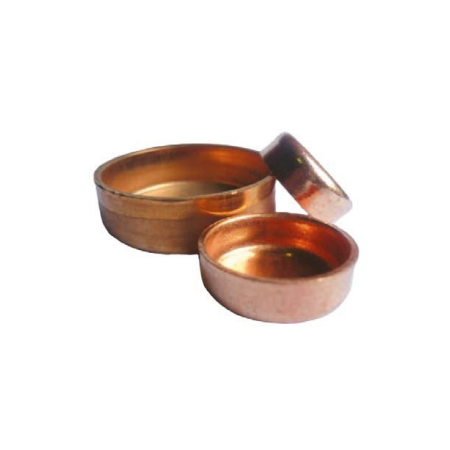

Copper End Cap 1-1/2 ID | ISO/AS 5149.2 Certified | R-410A & CO2 Compatible | by Aspen Pumps
The Copper End Cap 1-1/2 ID is designed for HVAC refrigeration systems, compatible with R-410A and CO2 refrigerants at 60 Bar pressure. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in high-pressure applications. Ideal for commercial and industrial refrigeration installations, this end cap minimizes the risk of refrigerant leakage, contributing to environmental sustainability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper End Cap 1-1/2 ID | ISO/AS 5149.2 Certified | R-410A & CO2 Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 110-24
Alternatively Known As: Copper End Cap 1.5 inch, Refrigeration Copper Cap, HVAC Copper Fitting End Cap
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant
- Manufactured and tested to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested
- Recommended 15% silver solder for brazing in high pressure applications
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for R-410A and HP-60 for safety
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure systems.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- Commercial and industrial refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Reduces risk of refrigerant leakage, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper End Cap 1-1/2 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
