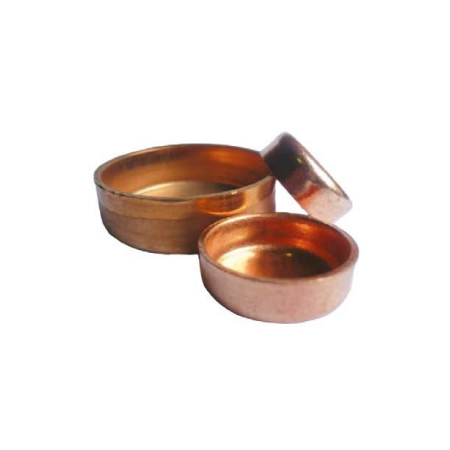

Copper End Cap 1-1/8 ID | High-Quality Copper | CO2 60 Bar Rated | ISO9001 Certified | by Aspen Pumps
The Copper End Cap 1-1/8 ID is designed for HVAC refrigeration systems, featuring high-quality copper construction and a pressure rating of CO2 60 Bar. Ideal for commercial and industrial refrigeration installations, this fitting exceeds ISO/AS 5149.2 standards, ensuring safety and performance in high-pressure applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper End Cap 1-1/8 ID | High-Quality Copper | CO2 60 Bar Rated | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 110-18
Alternatively Known As: Copper End Cap 1-1/8 inch, Refrigeration Copper Cap, HVAC Copper Fitting End Cap
Technical Specifications
- Material: High-quality copper
- Pressure Rating: CO2 60 Bar, R-410A and HP-60 rated
- Compliance: Exceeds ISO/AS 5149.2 standards
- Manufacturing: ISO9001 accredited facility
- Testing: Batch verification burst testing
- Installation: Recommended 15% silver solder brazing for high pressure applications
- Dimensions (H x L x W): 30mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
- Recommended 15% silver solder for brazing in high pressure applications
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using recommended brazing techniques to ensure safety and performance.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- R-410A and CO2 refrigeration systems
- Commercial and industrial refrigeration installations
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and reduced waste
Warranty Information
Backed by Aspen Pumps' quality assurance and manufacturing standards; warranty details available upon request.
Available Now
The Aspen Pumps SKY Copper End Cap 1-1/8 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high pressure rated copper fittings.
