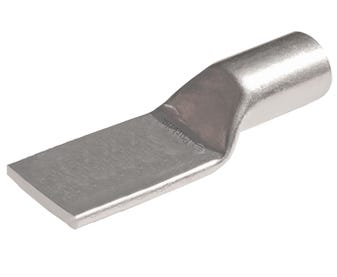

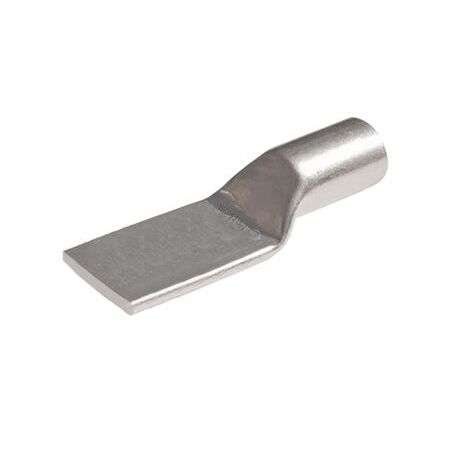

Copper Long Palm Long Barrel Lug 185mm | Heavy-Duty | Sealed Palm & High Conductivity by Cabac
Heavy-Duty Copper Long Palm Long Barrel Lug by Cabac designed for hazardous and severe fault current applications with sealed palm for air-tight cable use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Long Palm Long Barrel 185mm H/Duty
Brand: Cabac
SKU: CAL185LPBHD
Alternatively Known As: Copper Electrical Lug, Heavy Duty Copper Lug, Long Barrel Copper Lug, Sealed Palm Copper Lug
Technical Specifications
- Nominal Conductor: 185 mm²
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Sealed Palm: Silver solder with minimum melt point 180°C
- Operating Temperature: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): n/a mm x 185mm x n/a mm
- Weight: 0.5 kg
Key Features
- Made from high conductivity annealed copper (99.95% pure)
- Heavy-duty lug with sealed palm and palm junction
- Internally sealed barrel at the palm junction for air-tight cable applications
- Crimped with CABAC and MSS Power recommended standard dies
- Modification possible by bending or cropping the palm and adjusting stud holes
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure connections.
Applications
- Outdoor and indoor electrical connections requiring robust and reliable copper lugs
- Hazardous and severe fault current electrical applications
- Total air-tight cable applications
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 – Copper Conductors and Lugs
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac Copper Long Palm Long Barrel 185mm Heavy-Duty Lug is available for immediate purchase, ideal for electrical power connectivity in hazardous and severe fault current applications.
