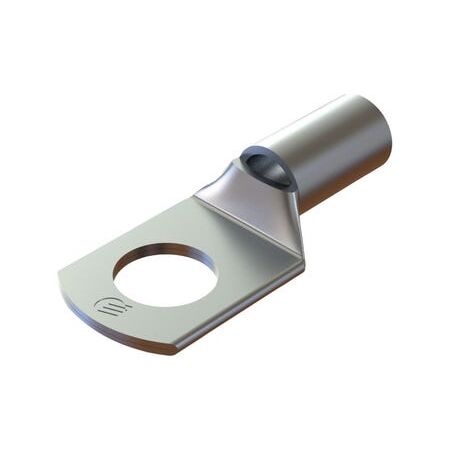

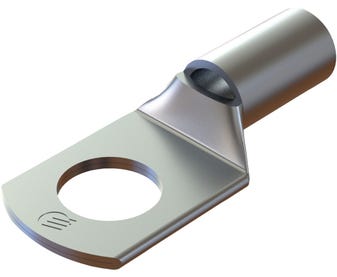

Copper Lug 1.5mm² 6mm Stud Pack of 10 Cabac

BRAND: CABAC
SKU: CAL1.5-6/K10
$5.60 List price: $7.50
+ −
30 Days Return Electricians Unlock Trade Access
Cabac copper lug features 1.5mm² conductor size, 6mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.

Alternatively Known As: Copper cable lug, copper crimp terminal, ring cable lug, M6 copper lug

Technical Specifications
  • Part Number: CAL1.5-6
  • Nominal Conductor Size: 1.0–1.5mm²
  • Cable Stranding: 7/0.50mm
  • Cable Entry ID: 1.8mm
  • Stud Size: 6mm
  • Material: 99.95% pure high-conductivity annealed copper
  • Finish: Electro-tinned copper
  • Connection Type: Compression crimp
  • Crimp Tooling: CABAC, MSS Power and compatible standard Australian tooling
  • Number of Crimps: 1
  • Pack Quantity: 10
  • Dimensions (H x L x W): 7mm x 20mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Designed for 1.5mm² copper conductors
  • 6mm stud hole for bolted equipment and terminal connections
  • High-conductivity annealed copper construction
  • Electro-tinned finish provides improved corrosion resistance
  • Viewing window assists conductor insertion and positioning
  • Suitable for general-purpose electrical terminations
  • Compatible with standard Australian crimping tools and dies
Applications
  • Switchboard and control-panel wiring
  • Low-voltage electrical connections
  • Equipment and terminal block connections
  • Electrical maintenance and repair work
  • General copper cable terminations
Standards & Compliance
  • AS 4325.1 / AS/NZS 4325.1 for compression connectors and cable lugs
Environmental Benefits
  • Copper is highly recyclable and can be recovered at end of product life
  • Electro-tinned finish helps resist corrosion and extend service life
  • Durable crimped terminations can reduce premature replacement and material waste
Warranty Information

Cabac terms provide repair or replacement for defective goods within one year from the date of supply, subject to correct installation, use and applicable Australian Consumer Law rights.

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
