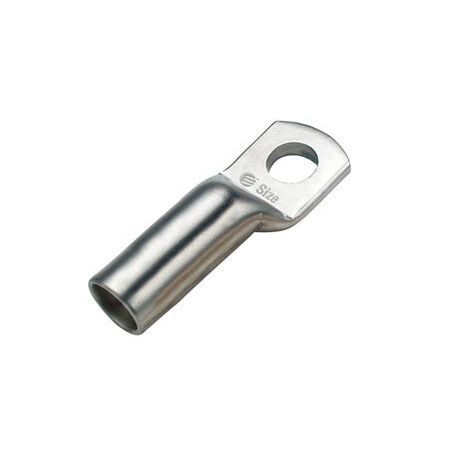

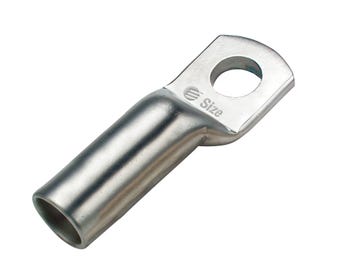

Copper Lug 10mm² 10mm Stud Long Barrel Cabac
Cabac copper lug features 10mm² conductor size, 10mm stud hole, and crimp barrel, long barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper crimp lug, copper cable lug, copper terminal lug, long-barrel copper lug, 10mm² cable lug
Technical Specifications
- Material: High-conductivity annealed copper
- Nominal Conductor Size: 10mm²
- Cable Stranding: 7 strands of 1.35mm diameter
- Stud Hole Size: 10mm
- Barrel Type: Long barrel crimp
- Internal Barrel Diameter: 4.7mm
- Copper Purity: 99.9% or higher
- Operating Temperature: Up to 155°C
- Recommended Crimp Tool: CABAC HT130-C-10 die
- Recommended Stud Torque: 44Nm
- Pack Quantity: 100 per box
- Dimensions (H x L x W): 10mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Long-barrel design provides increased crimping surface area
- Suitable for terminating copper conductors to switchboard studs and busbars
- Manufactured from high-conductivity annealed copper
- Tin-plated surface provides corrosion resistance
- Viewing window supports conductor insertion checks where applicable
- Compatible with standard Australian crimping tooling
- Designed for reliable electrical and mechanical connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician using the correct CABAC or approved equivalent crimping tool and die. Confirm conductor insertion, crimp sequence and termination torque before energising the installation.
Applications
- Switchboard cable terminations
- Busbar and power distribution connections
- Industrial electrical wiring
- Commercial electrical installations
- Residential switchboard connections
- Copper cable termination to electrical equipment studs
Standards & Compliance
- AS/NZS 4325.1:1995 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable at the end of the product's service life
- High electrical conductivity can reduce resistive energy losses at the termination
- Tin plating and annealed copper construction support extended service life and reduce replacement waste
Warranty Information
Covered by CABAC's standard warranty terms, generally providing repair or replacement for defects for one year from the date of supply, subject to correct installation, use and Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
