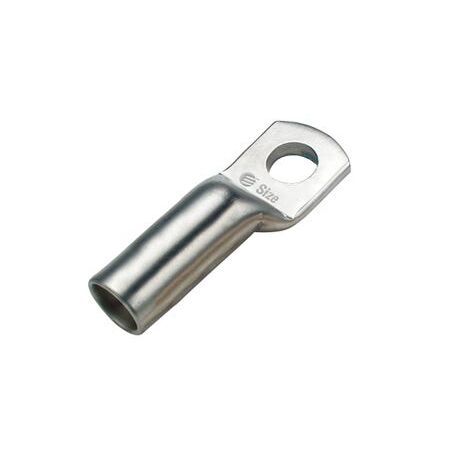

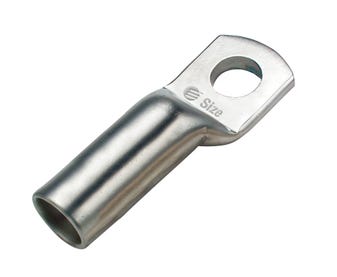

Copper Lug 10mm² 12mm Stud Long Barrel Cabac

BRAND: CABAC
SKU: CAL10LB-12
$1.80 List price: $2.50
+ −
30 Days Return Electricians Unlock Trade Access
Cabac copper lug features 10mm² conductor size, 12mm stud hole, and crimp barrel, long barrel. Ideal for terminating cable to switchboard studs and bars.

Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug, CAL10-12

Technical Specifications
  • Model: CAL10-12
  • Nominal Conductor Size: 10mm²
  • Stud Hole Size: 12mm
  • Conductor Stranding: 7/1.35mm
  • Barrel Internal Diameter: 4.7mm
  • Material: 99.9%+ high-conductivity annealed copper
  • Surface Finish: 99.9% tin electroplating
  • Tin Plating Thickness: 5–10 microns
  • Electrical Conductivity: 99.7% IACS
  • Operating Temperature: -55°C to +155°C
  • Crimping: Single crimp using HT130-C-10 or compatible standard tooling
  • Pack Quantity: 100 pieces
  • Dimensions (H x L x W): 10mm x 37mm x 23mm
  • Weight: 0.1 kg
Key Features
  • Suitable for terminating 10mm² copper conductors to 12mm studs and busbars
  • High-conductivity annealed copper construction
  • Tin-plated surface helps resist corrosion
  • Designed for switchboards, electrical panels and power distribution connections
  • Compatible with CABAC, Utilux and Burndy tooling
  • Viewing window assists conductor insertion and positioning
  • Complies with AS 4325.1 requirements
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrician using the correct calibrated crimping tool and manufacturer-recommended die. Connections must be installed in accordance with applicable electrical installation requirements, including AS/NZS 3000 where relevant.
Applications
  • Switchboard and distribution-board connections
  • Termination of 10mm² copper cables to 12mm studs
  • Electrical busbar and power-distribution connections
  • Industrial control panels and machinery wiring
  • Residential and commercial electrical installations
Standards & Compliance
  • AS 4325.1 for compression-type electrical connectors and cable lugs
  • Use within installations in accordance with AS/NZS 3000 Wiring Rules where applicable
Environmental Benefits
  • Copper is highly recyclable at end of service life
  • Tin plating helps extend service life by improving corrosion resistance
  • Durable crimped connections can reduce premature replacement and material waste
Warranty Information

CABAC warranty terms generally provide repair or replacement for manufacturing defects for 12 months from the date of supply, subject to correct installation, use and the applicable Australian Consumer Law guarantees.

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
