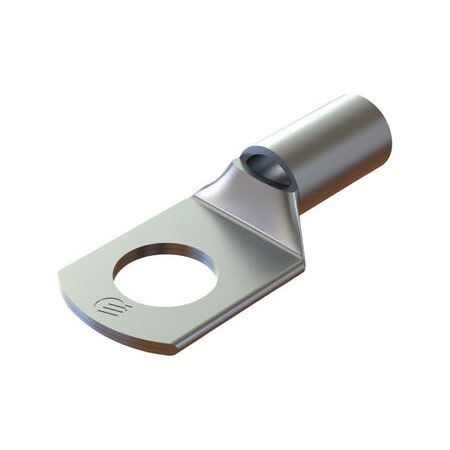

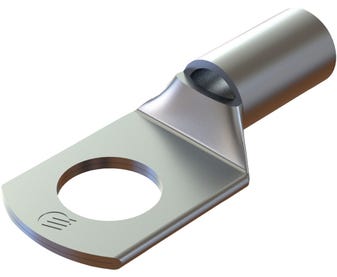

Copper Lug 10mm² 8mm Stud Pack of 10 Cabac
Cabac copper lug features 10mm² conductor size, 8mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Crimp Lug, Copper Cable Terminal, Ring Cable Lug, CAL10-8/K10
Technical Specifications
- Conductor Size: 10mm²
- Stud Hole Size: 8mm
- Material: High-conductivity annealed copper
- Copper Purity: 99.9%+ copper; approximately 99.95% conductive material
- Lug Type: Standard general-purpose crimp lug
- Barrel Inside Diameter: 4.7mm
- Overall Length: 29mm
- Palm Width: 14mm
- Barrel Length: 10mm
- Recommended Crimp Die: HT130-C-10
- Packaging: Kit of 10
- Dimensions (H x L x W): 5.7mm x 29mm x 14mm
- Weight: 0.1 kg
Key Features
- Designed for terminating 10mm² copper conductors
- Suitable for connection to 8mm studs
- Manufactured from high-conductivity annealed copper
- Standard Australian lug dimensions
- Compatible with standard CABAC and MSS Power tooling and dies
- Suitable for general electrical cable termination applications
Professional Installation Requirements
- Crimping and electrical termination should be carried out by a suitably qualified electrical tradesperson using the correct crimping tool, die and cable-preparation procedure. Installation must comply with the applicable requirements of AS/NZS 3000 and the equipment manufacturer's instructions.
Applications
- Electrical switchboards and distribution equipment
- Battery and power connection systems
- Control panels and industrial electrical equipment
- General low-voltage copper cable terminations
- Automotive, marine and electrical maintenance applications
Standards & Compliance
- Designed and manufactured to the applicable requirements of AS/NZS 4325.1 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable and can be recovered at the end of the product's service life
- Durable copper construction supports long-term use and reduces replacement waste
- Tin-plated copper finish, where applied to the standard range, can help maintain connection performance and service life
Warranty Information
Covered by CABAC's applicable product warranty and Australian Consumer Law guarantees. CABAC does not publish a fixed warranty duration for this standard copper lug kit; warranty claims are subject to the manufacturer's terms, correct installation and intended use.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
