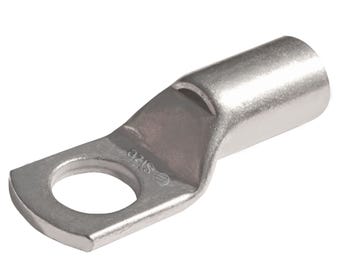

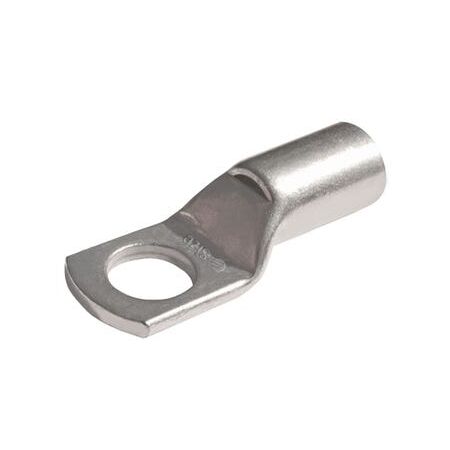

Copper Lug 10mm² Cable | 10mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 10mm² cable and 10mm stud—ideal for electrical power connectivity in industrial and residential wiring. Built for high conductivity and corrosion resistance, with tin plating for extended durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 10mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL10-10
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug, 10mm2 Copper Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Electroplating: 99.9% pure tin with lead and antimony
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 10 mm²
- Stranding: 7 strands of 1.35 mm diameter
- ID size: 4.7 mm
- Stud size: 10 mm
- Recommended torque (Nm): 10 mm stud - 44 Nm
- Dimensions (H x L x W): 5mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- Made from 99.95% pure high conductivity annealed copper
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling and dies
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and residential wiring
- Used in electrical panels, switchboards, and power distribution systems
- Suitable for crimping copper cables in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable tin plating extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 10mm2 Cable 10mm Stud is available for immediate purchase. Ideal for electrical power connectivity in residential, commercial, and industrial applications.
