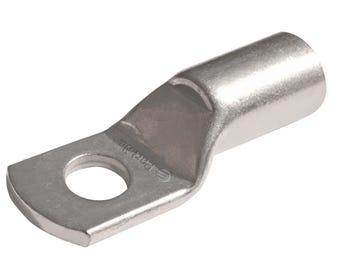

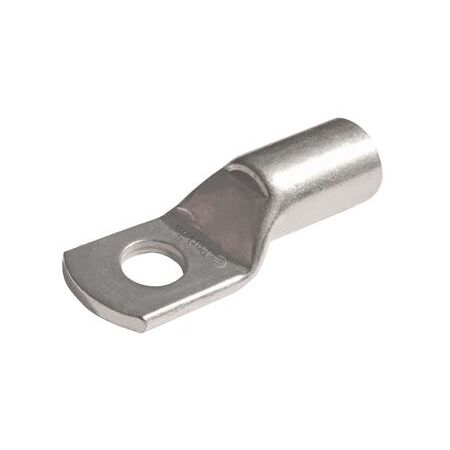

Copper Lug 10mm² Cable 5mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 10mm² cable capacity and 5mm stud—ideal for secure electrical connections. Built for industrial and residential wiring, with high conductivity and durable tin plating for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 10mm2 Cable 5mm Stud
Brand: Cabac
SKU: CAL10-5
Alternatively Known As: Copper Crimp Lug 10mm2, 10mm2 Copper Cable Lug, 5mm Stud Copper Lug, Electrical Cable Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 10 mm²
- Stranding: 7 strands of 1.35 mm diameter
- ID size: 4.7 mm
- Stud size: 5 mm
- Recommended torque for 5 mm thread: 5 Nm
- Dimensions (H x L x W): 5mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical properties
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use crimp lugs for electrical and power systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves efficiency
- Durable materials extend product life reducing waste
- Tin electroplating enhances corrosion resistance, reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 10mm2 Cable 5mm Stud is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable terminations.
