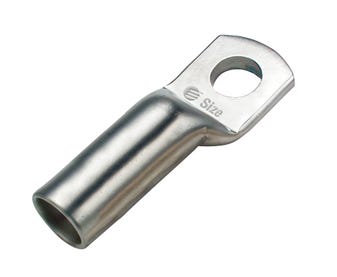

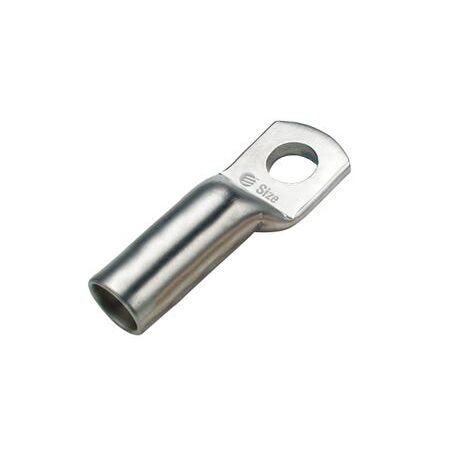

Copper Lug 10mm² Cable 6mm Stud | High Conductivity | Long Barrel Design | Water Resistant by Cabac
Copper Lug 10mm2 Cable 6mm Stud by Cabac is a high conductivity, outdoor style long barrel lug designed for secure, water-resistant electrical connections in high stress areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 10mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL10LB-6
Alternatively Known As: Copper Cable Lug 10mm², 6mm Stud Copper Terminal Lug, Outdoor Copper Crimp Lug, Long Barrel Copper Lug
Technical Specifications
- Nominal Conductor Size: 10 mm²
- ID Size: 4.7 mm
- Stud Size: 6 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 60mm x 80mm x 20mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel for multiple crimps and heatshrink sealing
- Palms solder sealed to prevent water ingress
- Designed for external use with no window present
- Compatible with standard hexagon crimping dies
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation by a qualified electrician or technician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical power connectivity for high voltage terminations
- Outdoor electrical installations requiring water ingress protection
- Crimping with standard hexagon dies for secure cable connections
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable design reduces need for frequent replacements
- Ensures efficient electrical conductivity reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
Copper Lug 10mm2 Cable 6mm Stud by Cabac is available for immediate purchase, ideal for electrical power connectivity and outdoor cable terminations.
