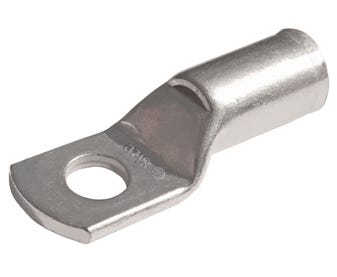

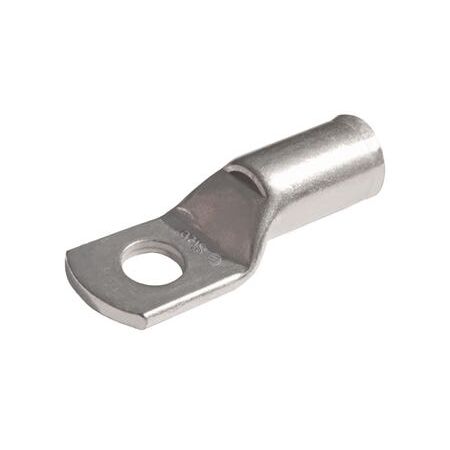

Copper Lug 120mm² Cable | 10mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug with 120mm² capacity and 10mm stud—ideal for electrical power connectivity. Built for fine stranded cables, with bellmouth design for easy conductor insertion and high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 120mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL120-10BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Fine Stranded Cable Lug, Electrical Copper Lug
Technical Specifications
- Nominal Conductor: 120mm²
- ID Size: 15.6mm
- Stud Size: 10mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 15.6mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for use with stranded cables in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
Warranty Information
Warranty information available upon request from the manufacturer.
Available Now
The Cabac Bellmouth Copper Lug 120mm2 Cable 10mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
