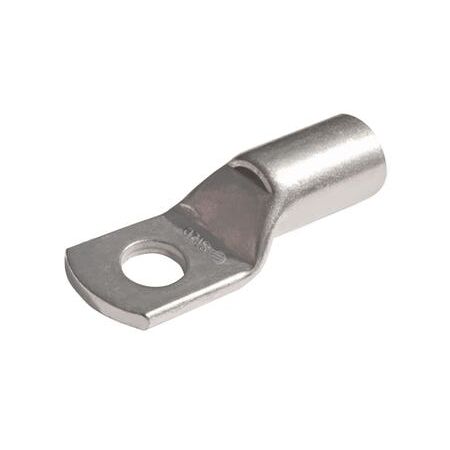

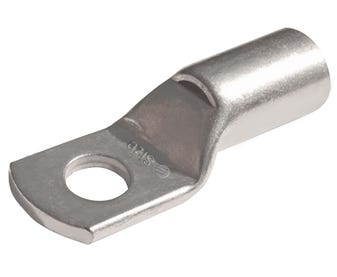

Copper Lug 120mm² Cable | 10mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 120mm² cable and 10mm stud—ideal for industrial and residential wiring. Built for high conductivity, with tin plating for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 120mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL120-10
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, 120mm2 Copper Lug, 10mm Stud Copper Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Thickness of plating: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 120 mm²
- Stranding: 37 strands of 2.03 mm diameter
- ID size: 15.6 mm
- Stud size: 10 mm
- Recommended torque (Nm): 10 mm stud - 44 Nm
- Dimensions (H x L x W): 10mm x 120mm x 15.6mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Electroplated with 99.9% pure tin with 5-10 microns thickness
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Complies with AS4325 Part 1 Australia and international standards IEC, DIN/VDE, JIS, BS, NEMA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring high conductivity copper lugs
- General purpose crimp lugs for electrical and power connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable materials extend product life and reduce waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 120mm2 Cable 10mm Stud is available for immediate purchase, ideal for electrical power connectivity and general purpose crimping applications.
