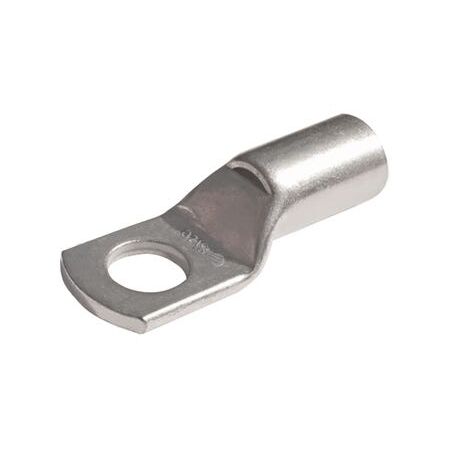

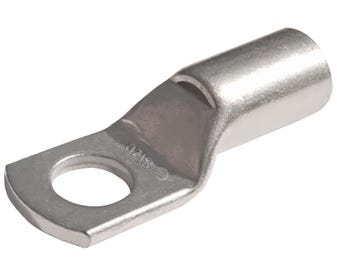

Copper Lug 120mm² Cable | 12mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 120mm² cable capacity and 12mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 120mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL120-12
Alternatively Known As: Copper Crimp Lug 120mm², Copper Cable Lug 120mm2, 12mm Stud Copper Lug, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 120 mm²
- Stranding: 37 strands of 2.03 mm diameter
- ID size: 15.6 mm
- Stud size: 12 mm
- Recommended torque (Nm): 12 mm stud - 77 Nm
- Dimensions (H x L x W): 12mm x 50mm x 15.6mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- General purpose crimp lugs for electrical wiring and cable terminations
- Suitable for use with 120mm² copper conductors in power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable tin plating extends product life, reducing replacement frequency and waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 120mm2 Cable 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
