Copper Lug 120mm2 Cable 8mm Stud | High Conductivity | Bellmouth Design | Durable by Cabac
The Bellmouth Copper Lug 120mm2 Cable 8mm Stud by Cabac is designed for fine stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity annealed copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

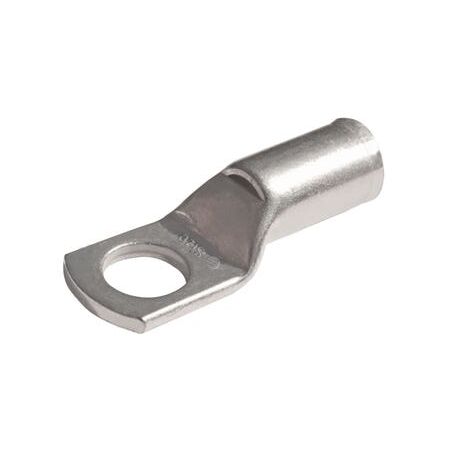

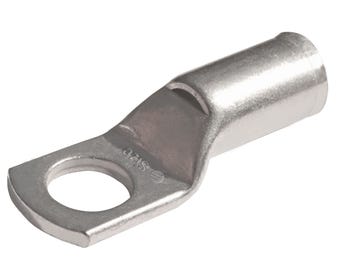

Product Name/Title: Bellmouth Copper Lug 120mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL120-8BM
Alternatively Known As: Copper Bell Mouth Lug, Fine Stranded Cable Lug, Copper Cable Lug 120mm2, Electrical Copper Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 p.p.m Max.
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead + antimony
- Thickness of plating: 5 - 10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155 °C
- Tooling is interchangeable between CABAC, Utilux and Burndy
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for use with stranded cables in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable copper material ensures long product life and reduces waste
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Bellmouth Copper Lug 120mm2 Cable 8mm Stud by Cabac is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
