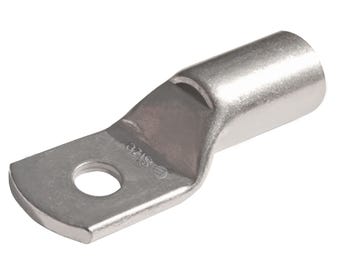

Copper Lug 120mm² Cable | 8mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 120mm² cable and 8mm stud—ideal for industrial and residential wiring. Built for high conductivity and corrosion resistance, with tin plating for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

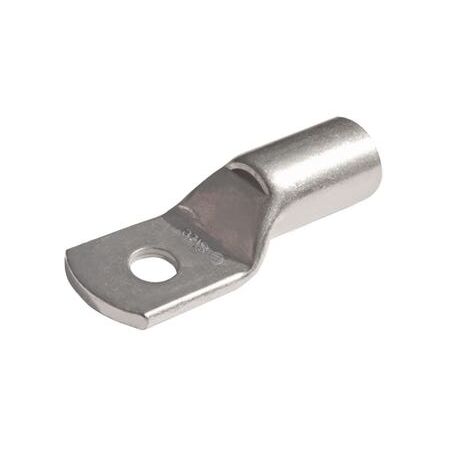

Product Name/Title: Copper Lug 120mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL120-8
Alternatively Known As: Copper Crimp Lug 120mm², Copper Cable Lug 8mm Stud, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 120 mm²
- Stranding: 37 strands of 2.03 mm diameter
- ID size: 15.6 mm
- Stud size: 8 mm
- Recommended torque for 8 mm stud: 22 Nm
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Complies with AS4325 Part 1 Australia and international standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring high conductivity copper lugs
- General purpose crimp lugs for electrical and power systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable tin plating extends product life, reducing waste
- Compliant with standards ensuring safe and efficient electrical connections
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 120mm2 Cable 8mm Stud is available now for immediate purchase. Ideal for electrical power connectivity and general purpose crimp lug applications.
