Copper Lug 120mm2 Cable Blank | 99.95% Pure Copper | Electroplated for Corrosion Resistance | Compatible with Standard Tooling by Cabac
Cabac Copper Lug 120mm2 Cable Blank made from high conductivity annealed copper, compliant with AS4325.1, ideal for electrical power connectivity and cable terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

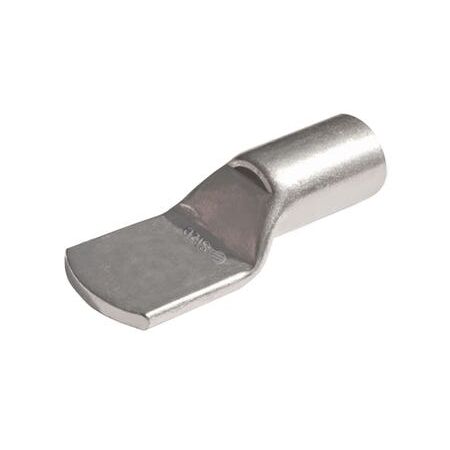

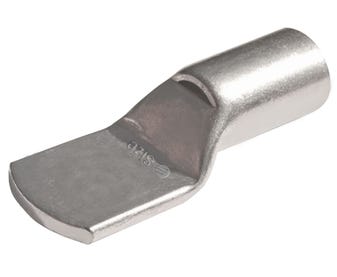

Product Name/Title: Copper Lug 120mm2 Cable Blank
Brand: Cabac
SKU: CAL120
Alternatively Known As: Copper Crimp Lug 120mm2, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 120 mm²
- Stranding: 37 strands of 2.03 mm diameter
- ID size: 15.6 mm
- Recommended torque (Nm): 5 mm thread - 5 Nm, 6 mm - 9 Nm, 8 mm - 22 Nm, 10 mm - 44 Nm, 12 mm - 77 Nm, 16 mm - 190 Nm
- Dimensions (H x L x W): 10mm x 50mm x 15.6mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Complies with AS4325 Part 1 Australian standard and international standards IEC, DIN/VDE, JIS, BS, NEMA
- Recommended torque values provided for secure and safe installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian tooling to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Used for secure cable terminations in power distribution systems
- Suitable for use in electrical services by utilities and rail services
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems, improving energy efficiency
- Durable electroplated finish extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 120mm2 Cable Blank is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
