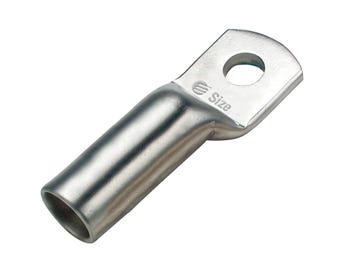

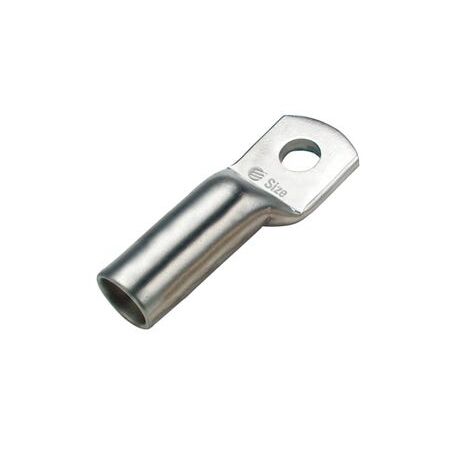

Copper Lug 150mm2 Cable 12mm Stud | High Conductivity | Long Barrel Design | Corrosion Resistant by Cabac
Copper Lug 150mm2 Cable 12mm Stud by Cabac is a high conductivity, outdoor style long barrel lug designed for secure electrical connections in high stress areas with excellent corrosion resistance and airtight sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 150mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL150LB-12
Alternatively Known As: Copper Cable Lug, Long Barrel Copper Lug, 150mm2 Copper Lug, 12mm Stud Copper Lug, Outdoor Copper Lug
Technical Specifications
- Nominal Conductor: 150 mm²
- ID Size: 16.7 mm
- Stud Size: 12 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155 °C
- Dimensions (H x L x W): 12mm x 150mm x 16.7mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel for more crimps and heatshrink sealing
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
- Tooling interchangeable with CABAC, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by qualified electrical technicians recommended to ensure proper crimping and sealing.
Applications
- High voltage terminations
- Drop outfuses
- Electrical and power connectivity requiring secure cable lugs
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from highly conductive copper reducing energy loss
- Durable design extends product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 150mm2 Cable 12mm Stud by Cabac is available for immediate purchase, ideal for electrical and power connectivity applications requiring durable and reliable cable lugs.
