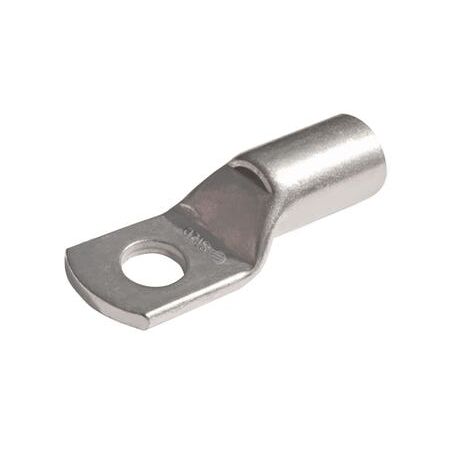

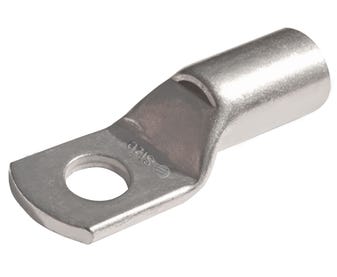

Copper Lug 150mm² Cable | 12mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 150mm² cable capacity and 12mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity annealed copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 150mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL150-12
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 150 mm²
- Stranding: 37 strands of 2.25 mm diameter
- ID size: 16.7 mm
- Stud size: 12 mm
- Torque recommendations (Nm): 5 mm thread - 5 Nm, 6 mm - 9 Nm, 8 mm - 22 Nm, 10 mm - 44 Nm, 12 mm - 77 Nm, 16 mm - 190 Nm
- Dimensions (H x L x W): 12mm x 50mm x 16.7mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for corrosion resistance
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Complies with AS4325.1 and international standards IEC, DIN/VDE, JIS, BS, and NEMA
- Recommended torque values provided for secure and safe connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- General purpose crimp lugs for electrical wiring and cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss and improves electrical efficiency
- Durable electroplating extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 150mm2 Cable 12mm Stud is available for immediate purchase, ideal for electrical power connectivity applications in industrial and commercial settings.
