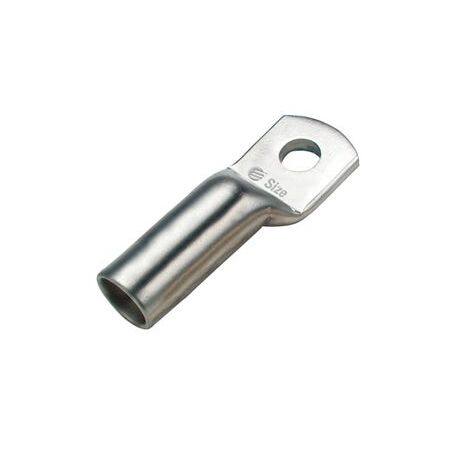

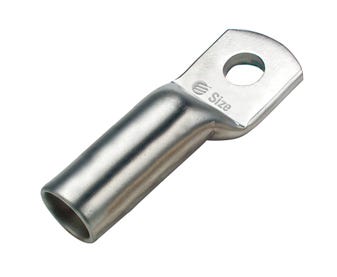

Copper Lug 150mm2 Cable | 16mm Stud | High Conductivity & Corrosion Resistant | Long Barrel by Cabac
Copper Lug 150mm2 Cable with 16mm Stud Long Barrel by Cabac, designed for outdoor use with high conductivity copper and solder sealed palms to prevent water ingress. Ideal for high voltage and high stress electrical terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 150mm2 Cable 16mm Stud Lb
Brand: Cabac
SKU: CAL150LB-16
Alternatively Known As: Copper Cable Lug, Long Barrel Copper Lug, 150mm2 Copper Crimp Lug, Outdoor Copper Lug, High Voltage Copper Lug
Technical Specifications
- Nominal Conductor Size: 150 mm²
- Stud Size: 16 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling Compatible with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 150mm x 30mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel allows multiple crimps for high stress areas
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- High voltage terminations
- Drop outfuses
- Electrical power connectivity requiring durable copper lugs
- Outdoor electrical installations
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
- Tin plating enhances longevity, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 150mm2 Cable 16mm Stud Long Barrel by Cabac is available for immediate purchase, ideal for outdoor electrical power connectivity and high voltage applications.
