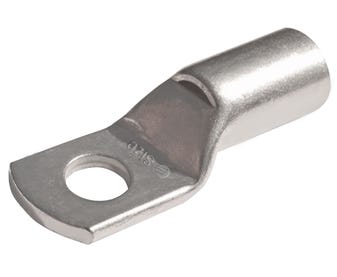

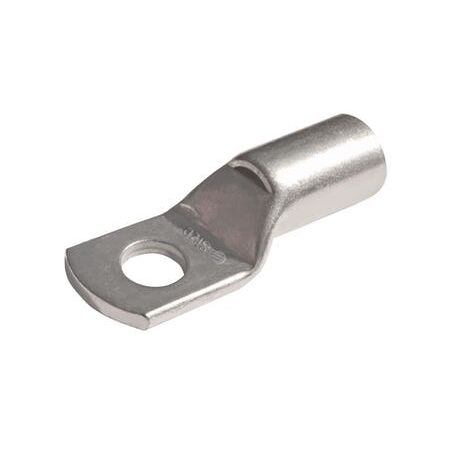

Copper Lug 150mm² Cable | 16mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 150mm² cable and 16mm stud—ideal for industrial and commercial electrical installations. Built for reliable connections, with high conductivity and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 150mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL150-16
Alternatively Known As: Copper Crimp Lug 150mm2, Copper Cable Lug 150mm2, 16mm Stud Copper Lug, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Electroplating: 99.9% pure tin with lead and antimony
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 150 mm²
- Stranding: 37 strands of 2.25 mm diameter
- Stud size: 16 mm
- Recommended torque for 16 mm stud: 190 Nm
- Dimensions (H x L x W): n/a mm x 150mm x n/a mm
- Weight: 0.1 kg
Key Features
- Made from 99.95% pure high conductivity annealed copper
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Complies with AS4325 Part 1 Australian standard
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- General purpose crimp lugs for electrical wiring and cable terminations
- Suitable for use in electrical distribution and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable electroplated finish extends product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 150mm2 Cable 16mm Stud is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
