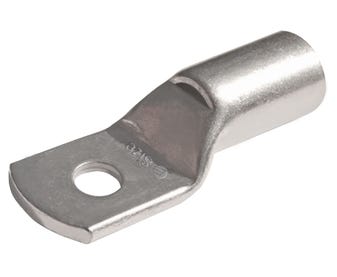

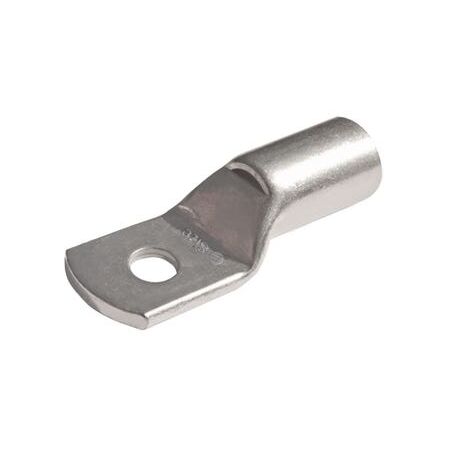

Copper Lug 150mm2 Cable | 8mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 150mm2 cable and 8mm stud—ideal for electrical power connectivity. Built for high conductivity and durability, with tin plating for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 150mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL150-8
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Torque recommendations (Nm): 5mm thread - 5 Nm, 6mm - 9 Nm, 8mm - 22 Nm, 10mm - 44 Nm, 12mm - 77 Nm, 16mm - 190 Nm
- Dimensions (H x L x W): n/a mm x 150mm x n/a mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Electroplated with 99.9% pure tin with lead and antimony
- Tooling interchangeable with CABAC, Utilux, and Burndy
- Recommended torque values compliant with AS/NZS standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tooling to ensure compliance and safety.
Applications
- Electrical power connectivity
- General purpose crimp lugs for electrical installations
- Suitable for use with standard Australian tooling
Standards & Compliance
- Complies with AS4325.1
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life and reduce waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 150mm2 Cable 8mm Stud is available now for immediate purchase. Ideal for electrical power connectivity and general purpose crimp lug applications.
