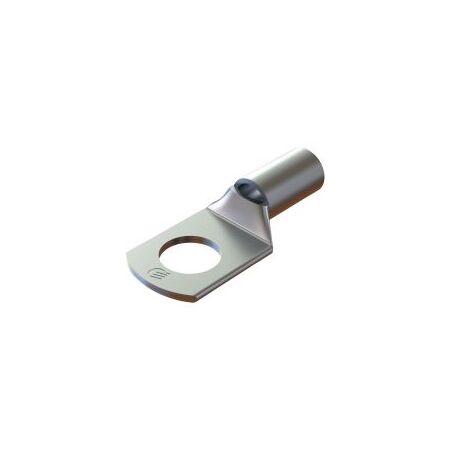

Copper Lug 16mm² 6mm Stud Pack of 10 Cabac
Cabac copper lug features 16mm² conductor size, 6mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 16mm² Copper Crimp Lug, 6mm Copper Cable Lug, Tubular Copper Lug, CAL16-6/K10
Technical Specifications
- Pack Quantity: 10 lugs
- Conductor Size: 16mm²
- Stud Hole Diameter: 6mm
- Material: High-conductivity annealed copper
- Finish: Tin electroplated
- Cable Stranding: 7/1.70mm
- Internal Diameter: 5.5mm
- Overall Lug Length: 37mm
- Barrel Length: 19mm
- Lug Width: 11mm
- Lug Thickness: 2.3mm
- Crimp Type: Hex crimp, one crimp
- Recommended Crimp Die: HT130-C-16
- Operating Temperature: -55°C to +155°C
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Suitable for terminating 16mm² copper conductors
- 6mm stud hole for standard metric terminal hardware
- High-conductivity annealed copper barrel
- Tin-plated finish helps improve corrosion resistance
- Compatible with standard CABAC and Australian crimping tooling
- Supplied as a convenient pack of 10
- Designed for general-purpose electrical cable terminations
Professional Installation Requirements
- Installation should be performed by a qualified electrician using an approved crimping tool and the correct die for 16mm² cable. Follow the cable, terminal and equipment manufacturer's installation instructions and applicable wiring requirements.
Applications
- Electrical switchboards and panels
- Power distribution and control wiring
- Battery and automotive electrical connections
- Industrial machinery wiring
- General-purpose copper cable terminations
Standards & Compliance
- AS/NZS 4325.1:1995 — compression and mechanical connectors for power cables, applicable to copper cable lugs
Environmental Benefits
- Copper construction is recyclable at end of service life
- Tin plating helps resist corrosion and extend connection service life
- Durable crimped terminations can reduce premature replacement and material waste
Warranty Information
Cabac warranty support provides repair or replacement for eligible goods, subject to Cabac terms and conditions. No specific fixed warranty period was published for this lug pack; Australian Consumer Law guarantees still apply where applicable.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
