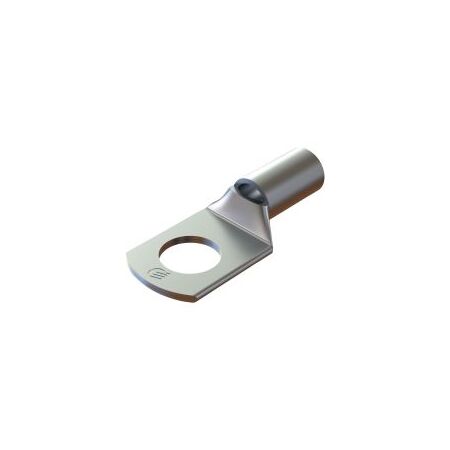

Copper Lug 16mm² 8mm Stud Pack of 10 Cabac
Cabac copper lug features 16mm² conductor size, 8mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CAL16-8 Copper Lug, Copper Crimp Lug, 16mm² Cable Lug, M8 Copper Cable Lug
Technical Specifications
- Part Number: CAL16-8
- Conductor Size: 16mm²
- Stud Hole Size: 8mm
- Internal Diameter: 5.5mm
- Material: 99.95% pure fully annealed copper
- Plating: 99.9% pure tin, 5–10 micron thickness
- Connection Type: Uninsulated crimp lug
- Recommended Stud Torque: 22Nm
- Operating Temperature: Up to 155°C
- Crimp Tooling: CABAC, MSS Power and compatible standard Australian tooling
- Pack Quantity: 10
- Dimensions (H x L x W): 8mm x 39mm x 14mm
- Weight: 0.1 kg
Key Features
- High-conductivity annealed copper construction
- Tin-plated finish provides improved corrosion resistance
- Suitable for general-purpose copper cable terminations
- Designed for 16mm² stranded copper conductors
- Compatible with standard Australian crimping tooling and dies
- 8mm stud hole for common electrical connection hardware
Professional Installation Requirements
- Crimping and installation should be performed by a suitably qualified electrical tradesperson using the correct die, conductor preparation and tightening torque. Isolate electrical systems before work and follow applicable wiring rules and manufacturer instructions.
Applications
- Electrical cable terminations
- Switchboard and distribution-board wiring
- Battery and DC power connections
- Control-panel and industrial wiring
- Earthing and bonding connections where correctly sized and specified
Standards & Compliance
- AS/NZS 4325.1:1995 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable at end of service life
- Tin-plated copper construction can help extend service life and reduce replacement waste
- Durable crimped connections support reliable electrical performance over the product lifespan
Warranty Information
CABAC standard warranty is generally 12 months from the date of purchase against manufacturing defects, subject to correct installation and use. Australian Consumer Law guarantees also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
