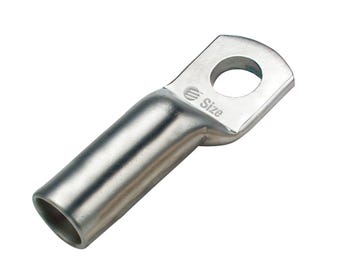

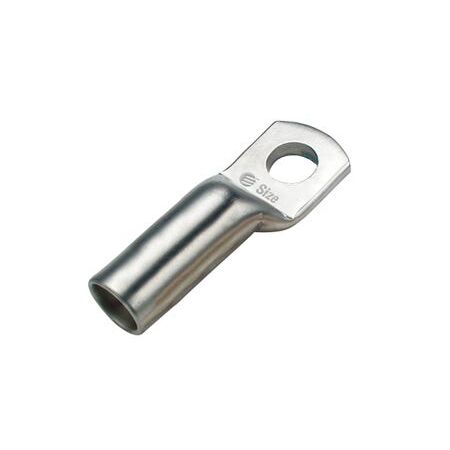

Copper Lug 16mm2 Cable with 10mm Stud | High Conductivity | Long Barrel Design | Weatherproof by Cabac
Cabac Copper Lug 16mm2 Cable with 10mm Stud is an outdoor long barrel lug made from pure tinned copper, designed for high conductivity and weatherproof electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 16mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL16LB-10
Alternatively Known As: Copper Cable Lug 16mm², Long Barrel Copper Lug, Outdoor Copper Lug 16mm2, Copper Crimp Lug 16mm2
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55°C to 155°C
- Torque recommendations for metric 8.8 tensile grade hardware
- Dimensions (H x L x W): 50mm x 80mm x 16mm
- Weight: 0.05 kg
Key Features
- Made from 99.95% pure copper with high conductivity
- Extra long barrel for more crimps and heatshrink sealing
- Palms solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
- Interchangeable tooling with CABAC, Utilux, and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and torque application for safety and performance.
Applications
- High voltage terminations
- Drop outfuses
- External electrical connections requiring high conductivity and weather resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable corrosion-resistant design extends product life, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 16mm2 Cable 10mm Stud is available for immediate purchase, ideal for outdoor electrical connectivity requiring high durability and conductivity.
