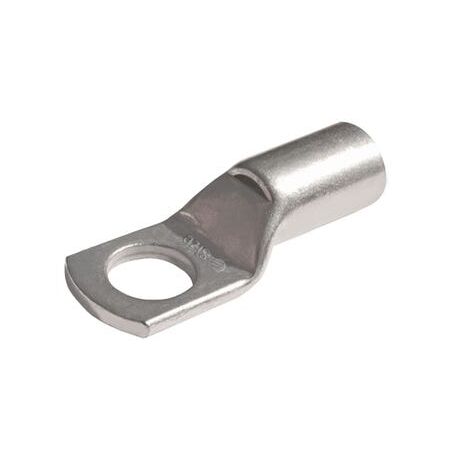

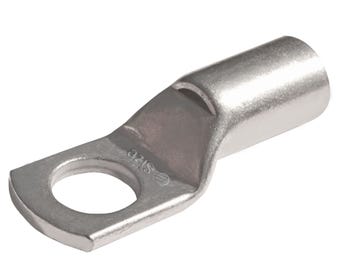

Copper Lug 16mm² Cable 10mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 16mm² cable and 10mm stud—ideal for industrial and residential wiring. Built for optimal electrical performance, with high conductivity copper and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 16mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL16-10
Alternatively Known As: Copper Crimp Lug 16mm2, Copper Cable Lug 16mm2, 10mm Stud Copper Lug, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 16 mm²
- Stranding: 7 strands of 1.70 mm diameter
- ID size: 5.5 mm
- Stud size: 10 mm
- Recommended torque for 10 mm stud: 44 Nm
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- Compatible with standard Australian tooling for crimping
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 16mm2 Cable 10mm Stud is available for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high-quality cable terminations.
