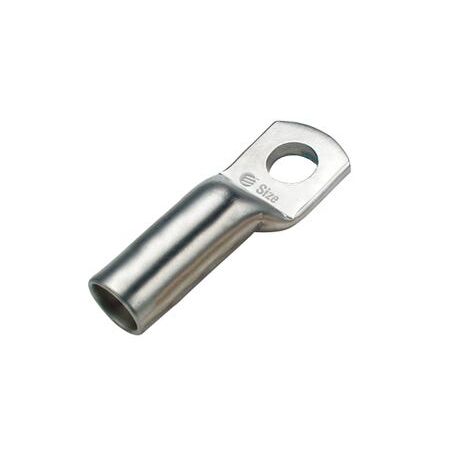

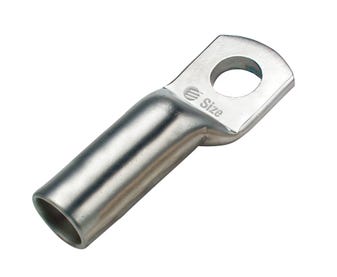

Copper Lug 16mm2 Cable 6mm Stud | High Conductivity | Long Barrel Design | Tin Plated by Cabac
The Cabac Copper Lug 16mm2 Cable 6mm Stud is a high conductivity, long barrel copper lug designed for external electrical connections with superior sealing and crimping capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 16mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL16LB-6
Alternatively Known As: Copper Cable Lug, Long Barrel Copper Lug, 16mm2 Copper Crimp Lug, 6mm Stud Copper Lug
Technical Specifications
- Nominal Conductor Size: 15 mm²
- ID Size: 5.5 mm
- Stud Size: 6 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 80mm x 20mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel allows more crimps and heatshrink sealing for airtight protection
- Palms are solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Tin electroplating with 5-10 microns thickness for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard hexagon crimping dies to ensure secure and compliant connections.
Applications
- Electrical power connectivity for high voltage terminations
- Drop outfuses and other high stress electrical areas
- External use in electrical installations requiring secure cable connections
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from highly conductive copper reducing energy loss in electrical systems
- Durable design extends product life reducing waste
- Tin plating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 16mm2 Cable 6mm Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring durable and reliable cable terminations.
