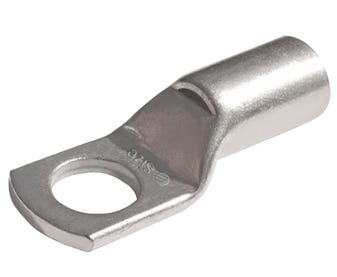

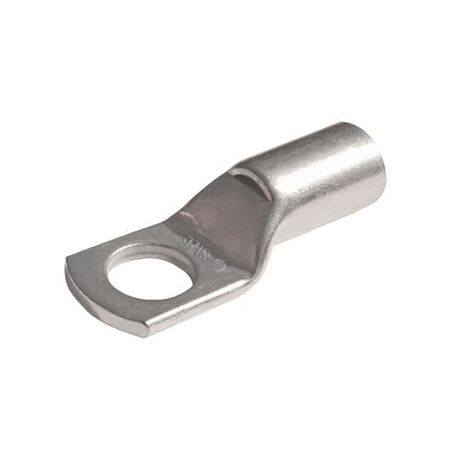

Copper Lug 16mm² Cable 6mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 16mm² cable capacity and 6mm stud—ideal for electrical power connectivity. Built for industrial and residential wiring, with high conductivity and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 16mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL16-6
Alternatively Known As: Copper Crimp Lug 16mm2, Copper Cable Lug 16mm2, 6mm Stud Copper Lug, Electrical Copper Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure annealed copper
- Electroplating: 99.9% pure tin with lead and antimony
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 16 mm²
- Stranding: 7 strands of 1.70 mm diameter
- ID size: 5.5 mm
- Stud size: 6 mm
- Recommended torque for 6 mm thread: 9 Nm
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.95% pure high conductivity annealed copper
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling and dies
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and residential wiring
- Use in electrical panels, switchboards, and power distribution systems
- Suitable for crimping copper cables in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life, reducing waste
- Tin plating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 16mm2 Cable 6mm Stud is available for immediate purchase. Ideal for electrical power connectivity applications in residential, commercial, and industrial settings.
