Copper Lug 16mm² Cable | 8mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug with 16mm² cable capacity and 8mm stud—ideal for electrical power connectivity. Built for fine stranded cables, with a bellmouth design for easy conductor insertion and high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

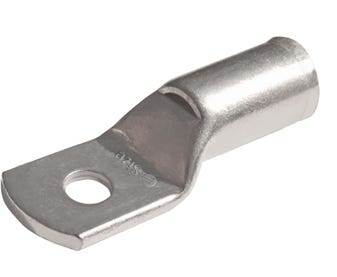

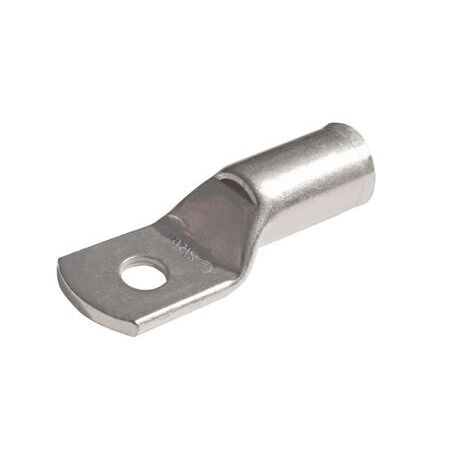

Product Name/Title: Bellmouth Copper Lug 16mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL16-8BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug 16mm2, 8mm Stud Copper Lug, Fine Stranded Cable Lug
Technical Specifications
- Nominal Conductor Size: 16mm²
- ID Size: 5.5mm
- Stud Size: 8mm
- Conductive Material: Copper 99.95% pure with oxygen content 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
Warranty Information
Warranty information available upon request from Cabac.
Available Now
The Bellmouth Copper Lug 16mm2 Cable 8mm Stud by Cabac is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy cable insertion.
