Home/Electrical/Accessories/Lugs & Associated Equipment/Copper Lugs/Copper Lug 185mm² Cable | 10mm Stud | Bellmouth Design by Cabac

Trade Discount 17%

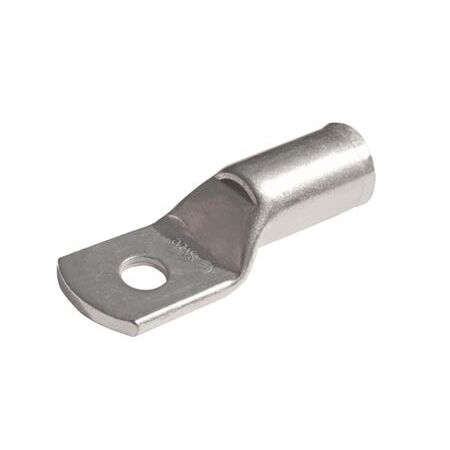

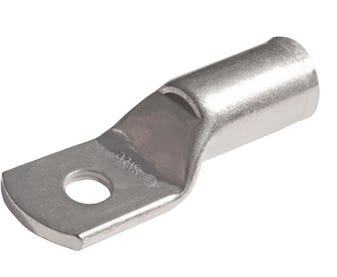

Bellmouth Copper Lug 185mm2 Cable 10mm Stud

Copper Lug 185mm² Cable | 10mm Stud | Bellmouth Design by Cabac

BRAND: CABAC

SKU: CAL185-10BM

$10.70 List price: $12.90

+ −

30 Days Return Delivery Options

Copper lug with 185mm² capacity and 10mm stud—ideal for industrial and commercial electrical wiring. Built for high conductivity and easy conductor insertion with bellmouth design.

Description

Product Name/Title: Bellmouth Copper Lug 185mm2 Cable 10mm Stud

Brand: Cabac

SKU: CAL185-10BM

Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Stranded Cable Lug, Electrical Copper Lug

Technical Specifications

Nominal Conductor Size: 185mm²
ID Size: 18.4mm
Stud Size: 10mm
Conductive Material: Copper 99.95% pure
Oxygen Content: 30 ppm max
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Electroplating Material: Tin 99.9% pure with lead and antimony
Electroplating Thickness: 5-10 microns
Total Conductivity: 99.7% IACS
Total Resistivity: 1.738 micro-ohm cm
Operating Temperature Range: -55 to 155°C
Tooling Interchangeable with CABAC, Utilux, and Burndy
Dimensions (H x L x W): 20mm x 100mm x 50mm
Weight: 0.1 kg

Key Features

Made from high conductivity annealed copper
Crimped with CABAC and MSS Power standard tooling and dies
Suitable for fine strand conductors
Bellmouth design makes conductor insertion easier

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.

Applications

Electrical power connectivity for fine stranded flexible cables
Suitable for use in electrical installations requiring high conductivity lugs
Ideal for industrial and commercial electrical wiring and cabling

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

High conductivity reduces energy loss in electrical connections
Durable materials extend product life reducing waste
Oxygen-free copper minimizes corrosion and environmental impact

Warranty Information

Warranty details available upon request from Cabac sales team.

Available Now

The Cabac Bellmouth Copper Lug 185mm2 Cable 10mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
