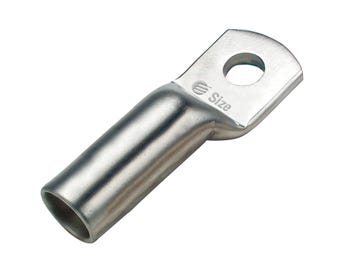

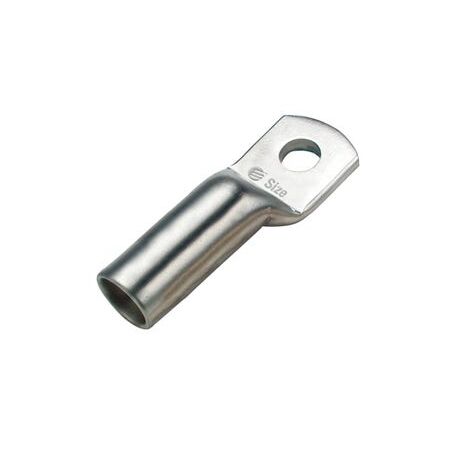

Copper Lug 185mm2 Cable 12mm Stud | High Conductivity | Long Barrel Design | Water Resistant by Cabac
Cabac Copper Lug 185mm2 Cable with 12mm Stud is a high conductivity, outdoor style long barrel lug designed for secure, water-resistant electrical connections in high stress and high voltage applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 185mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL185LB-12
Alternatively Known As: Copper Cable Lug 185mm², Long Barrel Copper Lug, Outdoor Copper Lug 185mm2, High Conductivity Copper Terminal
Technical Specifications
- Nominal Conductor Size: 185 mm²
- Stud Size: 12 mm
- Material: 99.95% pure copper, fully annealed
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling Compatible with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 12mm x 185mm x 18.4mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel allows more crimps and heatshrink sealing for airtight protection
- Palms are solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Electroplated with 99.9% pure tin for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical power connectivity for high voltage terminations
- Drop outfuses and other high stress electrical connections
- Outdoor electrical installations requiring water ingress protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
- Tin electroplating enhances corrosion resistance, extending product life
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 185mm2 Cable 12mm Stud is available for immediate purchase, ideal for electrical power connectivity in industrial and outdoor applications.
