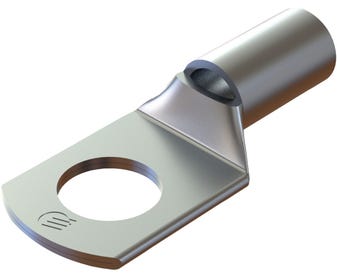

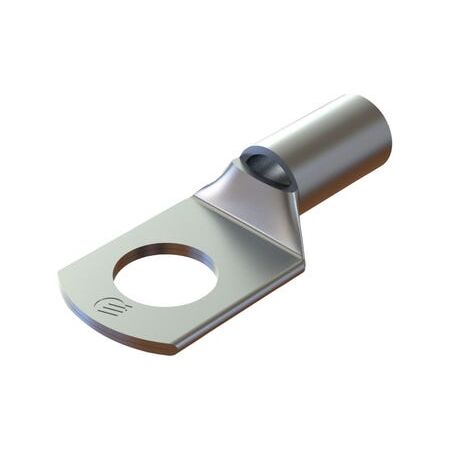

Copper Lug 2.5mm² 6mm Stud Pack of 10 Cabac
Cabac copper lug features 2.5mm² conductor size, 6mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Cable Lug, Copper Crimp Terminal, Tubular Cable Lug, CAL2.5-6/K10
Technical Specifications
- Part Number: CAL2.5-6/K10
- Conductor Size: 2.5mm²
- Stranding: 7 x 0.67mm
- Stud Hole Diameter: 6mm
- Internal Barrel Diameter: 2.4mm
- Material: High-conductivity annealed copper
- Surface Finish: 99.9% pure tin plating
- Tin Plating Thickness: 5–10 microns
- Barrel Tensile Strength: 200MPa
- Ductility: 40%
- Operating Temperature: Up to 155°C
- Crimping: One crimp using standard Australian tooling
- Pack Quantity: 10 lugs
- Dimensions (H x L x W): 10mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Designed for 2.5mm² copper conductors
- 6mm stud hole suits common electrical connection hardware
- Made from high-conductivity annealed copper
- Tin-plated surface provides corrosion resistance
- Compatible with CABAC and MSS Power standard crimping tooling and dies
- Suitable for general-purpose cable termination
- Uninsulated tubular crimp lug design
Professional Installation Requirements
- Installation should be performed by a qualified electrician using the correct CABAC-approved crimping tool and die for 2.5mm² lugs. Crimped connections should be inspected and tested before energising.
Applications
- Electrical panel and switchboard wiring
- Residential electrical installations
- Commercial and industrial wiring
- Control wiring and equipment connections
- General cable termination and power connectivity
Standards & Compliance
- AS/NZS 4325.1:1995 – Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper construction is recyclable at end of product life
- High electrical conductivity can help minimise connection losses
- Tin plating helps resist corrosion and extend service life
- Durable crimp construction can reduce replacement frequency and material waste
Warranty Information
Covered by CABAC’s standard warranty terms for repair or replacement of defective goods, subject to correct installation, use and applicable Australian Consumer Law rights. No fixed warranty period was published for this product.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock availability.
