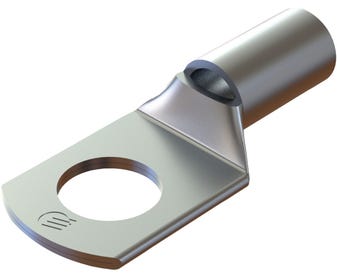

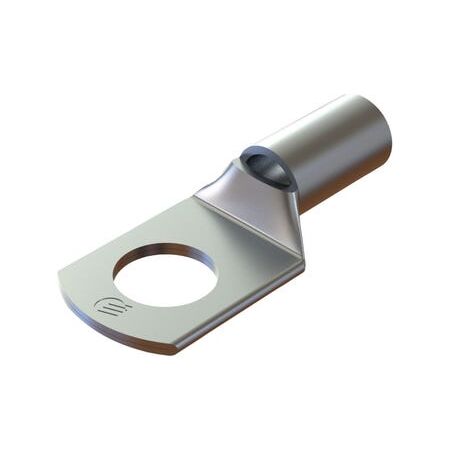

Copper Lug 2.5mm² 8mm Stud Pack of 10 Cabac
Cabac copper lug features 2.5mm² conductor size, 8mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper cable lug, copper crimp lug, M8 copper lug, ring terminal
Technical Specifications
- Product Code: CAL2.5-8
- Conductor Size: 2.5mm²
- Stud Hole Diameter: 8mm
- Cable Stranding: 7/0.67
- Internal Barrel Diameter: 2.4mm
- Material: High-conductivity annealed copper
- Copper Purity: 99.95%
- Plating: 99.9% tin, approximately 5–10 microns
- Lug Type: Standard copper crimp lug
- Operating Temperature: -55°C to +155°C
- Pack Quantity: 10 lugs
- Recommended Tooling: Standard Australian copper lug crimping tooling
- Recommended Torque for 8mm Hardware: 22Nm
- Dimensions (H x L x W): 5mm x 24mm x 11mm
- Weight: 0.1 kg
Key Features
- Suitable for terminating 2.5mm² copper conductors
- 8mm stud hole for M8 connection points
- Manufactured from high-conductivity, fully annealed copper
- Tin-plated surface provides improved corrosion resistance
- Designed for general electrical cable termination applications
- Compatible with CABAC, MSS Power and interchangeable Australian-standard tooling
- Standard barrel design for crimp termination
Professional Installation Requirements
- Use only with compatible cable-lug crimping tooling and follow the tool manufacturer's die and crimping instructions. Electrical terminations should be completed by a suitably competent person with the circuit isolated and verified de-energised.
Applications
- General electrical cable terminations
- Switchboards and electrical panels
- Battery and power distribution connections
- Control wiring and industrial machinery
- HVAC, refrigeration and building-services electrical connections
Standards & Compliance
- AS 4325 Part 1 for compression connectors and copper conductor lugs
Environmental Benefits
- Copper is highly recyclable at end of service life
- Tin plating helps resist corrosion and can extend service life, reducing replacement waste
- Durable crimped connections support reliable long-term electrical installations
Warranty Information
No fixed product-specific warranty period identified. Warranty claims are subject to CABAC's published terms and conditions and applicable Australian Consumer Law guarantees; repair or replacement may apply for eligible product defects.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
