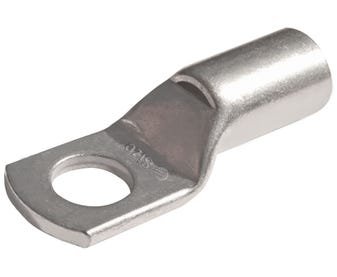

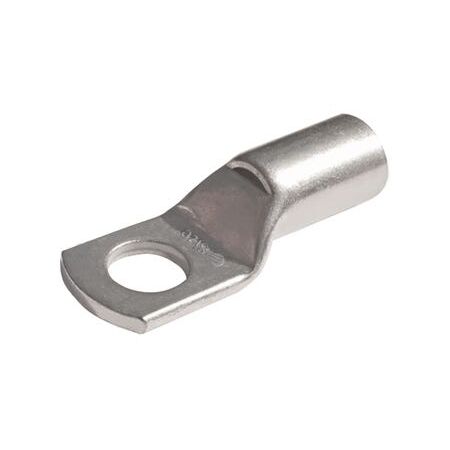

Copper Lug 2.5mm² Cable | 5mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 2.5mm² cable and 5mm stud—ideal for electrical power connectivity. Built for reliable connections, with high conductivity copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 2.5mm2 Cable 5mm Stud
Brand: Cabac
SKU: CAL2.5-5
Alternatively Known As: Copper Crimp Lug 2.5mm², Copper Cable Lug 5mm Stud, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 2.5 mm²
- Stranding: 7 strands of 0.67 mm diameter
- ID size: 2.4 mm
- Stud size: 5 mm
- Recommended torque for 5 mm stud: 5 Nm
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring secure cable connections
- Compatible with Australian standard tooling for crimping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable tin plating extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 2.5mm2 Cable 5mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and compliant cable terminations.
