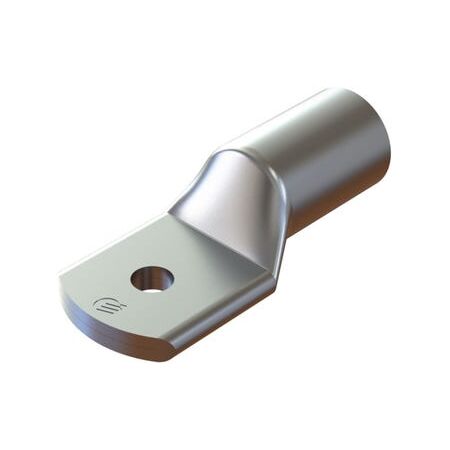

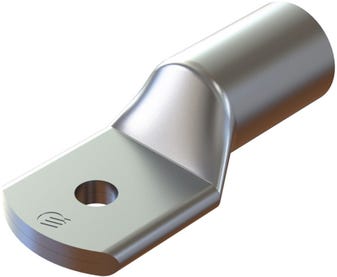

Copper Lug 240mm² 14mm Stud Cabac
Cabac copper lug features 240mm² conductor size, 14mm stud hole, and crimp barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 240mm² Copper Crimp Lug, Copper Cable Terminal, Compression Lug, M14 Copper Lug
Technical Specifications
- Conductor Size: 240mm²
- Stud Hole Diameter: 14mm
- Material: 99.9%+ high-conductivity annealed copper
- Plating: Electro-tin plated for corrosion resistance
- Cable Entry: Bellmouth entry for easier conductor insertion
- Barrel Type: Standard crimp barrel
- Operating Temperature: -55°C to +155°C
- Recommended Crimping Tool: CABAC HT130-C-240 or compatible tooling
- Crimping: Three hex crimps using the correct 240mm² die
- Packaging Unit: 1 each
- Dimensions (H x L x W): 7.1mm x 92mm x 40mm
- Weight: 0.14 kg
Key Features
- Designed for terminating 240mm² copper cables
- 14mm stud hole suits switchboard studs, busbars and electrical equipment
- High-conductivity copper construction supports low-resistance electrical connections
- Tin plating improves corrosion resistance
- Bellmouth barrel assists insertion of fine-stranded conductors
- Compatible with standard Australian crimping practices
- Suitable for high-current power connectivity applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician using the correct 240mm² crimping die and manufacturer-approved crimping procedure. Ensure the conductor is fully inserted and the finished termination is correctly torqued to the equipment manufacturer's requirements.
Applications
- Switchboard cable termination
- Busbar and distribution-board connections
- Electrical power-distribution equipment
- Industrial control panels and switchgear
- High-current copper cable connections
Standards & Compliance
- AS/NZS 4325.1:1995 for crimp-type electrical connectors and cable lugs
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of service life
- Tin-plated copper construction provides corrosion resistance and supports extended service life
- Low-resistance connections can help reduce electrical losses in correctly designed installations
Warranty Information
CABAC goods are generally covered by a 12-month warranty against manufacturing defects from the date of supply, subject to correct installation, use and the applicable CABAC warranty terms. Australian Consumer Law rights also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
