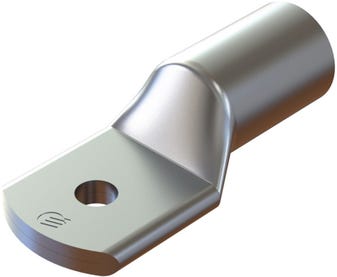

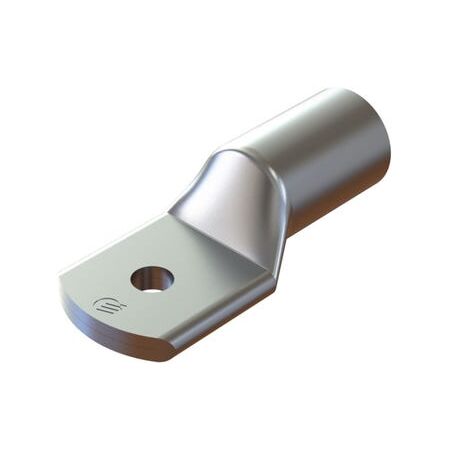

Copper Lug 240mm² 20mm Stud Cabac
Cabac copper lug features 240mm² conductor size, 20mm stud hole, and crimp barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper cable lug, copper compression lug, tubular cable lug, M20 cable lug
Technical Specifications
- Part Number: CAL240-20
- Conductor Size: 240mm²
- Stud Size: M20 / 20mm
- Material: 99.9%+ high-conductivity annealed copper
- Barrel Internal Diameter: 21.2mm
- Conductivity: 99.7% IACS
- Resistivity: 1.738 micro-ohm cm
- Continuous Operating Temperature: Up to 155°C
- Crimping: Three hex crimps using compatible CABAC/MSS Power tooling
- Crimp Die: HT130-C-240
- Finish: Unplated copper
- Packaging: 1 piece
- Dimensions (H x L x W): 7.1mm x 92mm x 40mm
- Weight: 0.19 kg
Key Features
- Designed for terminating 240mm² copper cable onto M20 switchboard studs, bars and electrical equipment
- Manufactured from high-conductivity annealed copper
- No inspection window, as specified for CABAC lugs from 240mm² upwards
- Compatible with standard Australian crimping tooling
- Tooling is dimensionally interchangeable with compatible Utilux and Burndy systems
- Suitable for high-current power distribution and switchboard connections
Professional Installation Requirements
- Installation and crimping should be performed by a suitably qualified electrician using the specified CABAC-compatible tooling and following the cable manufacturer's and lug manufacturer's instructions. De-energise and isolate the electrical system before installation.
Applications
- Switchboard stud connections
- Copper busbar and power distribution connections
- Industrial electrical equipment terminations
- Low-voltage power cable terminations
- Commercial and infrastructure electrical installations
Standards & Compliance
- AS 4325.1 for compression connectors and cable lugs
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of product life
- Durable copper construction supports long service life and reduces replacement waste
- High electrical conductivity can help minimise connection losses when correctly installed
- Unplated copper avoids the use of an additional surface-plating layer
Warranty Information
CABAC's general warranty provides repair or replacement for defective goods for one year from the date of supply, subject to its terms and exclusions. Australian Consumer Law guarantees also apply where relevant.
