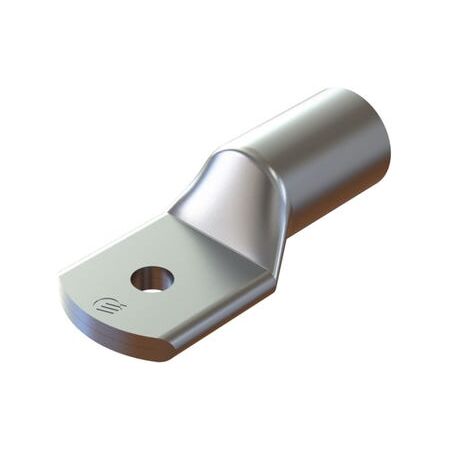

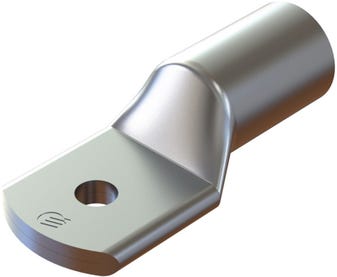

Copper Lug 240mm² 8mm Stud Cabac
Cabac copper lug features 240mm² conductor size, 8mm stud hole, and crimp barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 240 mm² Copper Cable Lug, Copper Compression Lug, Standard Copper Crimp Lug, CAL240-8
Technical Specifications
- Conductor Size: 240 mm²
- Stud Hole: 8 mm / M8
- Material: 99.9%+ high-conductivity annealed copper
- Finish: Tin electroplated
- Internal Diameter: 21.2 mm
- Barrel Length: 38 mm
- Lug Thickness: 7.1 mm
- Crimp Die: HT130-C-240
- Number of Crimps: 3
- Operating Temperature: Up to 155°C
- Packaging Unit: 1 each
- Dimensions (H x L x W): 7.1mm x 92mm x 42mm
- Weight: 0.16 kg
Key Features
- Designed for terminating 240 mm² copper conductors to switchboard studs, busbars and electrical equipment
- Annealed copper construction provides high conductivity and ductility
- Tin-plated finish supports corrosion resistance and reliable electrical contact
- Standard barrel design with bellmouth cable entry
- Suitable for crimping with CABAC HT130-C-240 tooling
- Three-crimp configuration for large-conductor terminations
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrician using the specified HT130-C-240 crimp die and approved crimping procedures. De-energise the installation before fitting and follow AS/NZS 3000 requirements.
Applications
- Switchboard and distribution-board cable terminations
- Termination of 240 mm² copper cables to M8 studs
- Busbar and electrical equipment connections
- Industrial, commercial and infrastructure power installations
Standards & Compliance
- AS/NZS 4325.1 for compression connectors and cable lugs
- AS/NZS 3000 for installation within electrical wiring systems
Environmental Benefits
- Copper is highly recyclable at end of product life
- Tin plating and annealed copper construction support long service life and reduce replacement waste
- High-conductivity copper helps minimise connection losses in correctly installed electrical systems
Warranty Information
CABAC provides a general 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct installation, use and the manufacturer's warranty conditions.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm current stock and lead time with the distributor.
