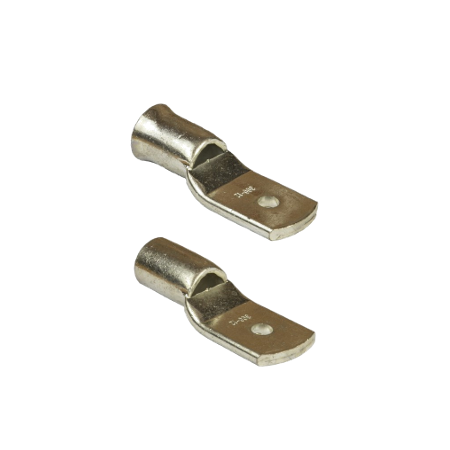

Copper Lug 240mm² | 10mm Stud | Electro-Tinned & Flared Entry by United Manufacturers Australia
Copper lug with 240mm² cable size and 10mm stud—ideal for heavy-duty electrical wiring and industrial applications. Built for superior conductivity with 99% oxygen-free copper and electro-tinned finish for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fixed Entry Lug#UMBML240-10
Brand: United Manufacturers Australia
SKU: UMBML240-10
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, Copper Terminal Lug
Technical Specifications
- Material: 99% oxygen-free copper
- Finish: Electro-tinned
- Type: Flared Entry
- Size: 240mm² cable size with 10mm stud
- Operating Temperature: -55°C to +155°C
- Pack Quantity: 1
- Dimensions (H x L x W): 20mm x 120mm x 60mm
- Weight: 0.2 kg
Key Features
- Fully annealed for maximum conductivity and flexibility
- Made from 99% oxygen-free copper for superior electrical performance
- Electro-tinned to resist corrosion and enhance durability
- Flared entry design for easy cable insertion
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections in industrial and commercial power distribution
- Heavy-duty electrical wiring and grounding
- Use in switchboards, transformers, and electrical panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable copper material
- Electro-tinning reduces corrosion, extending product life and reducing waste
Warranty Information
Warranty against manufacturing defects as per United Manufacturers Australia standard policy.
Available Now
The Bell Mouth Copper Lug 240mm sq-10mm stud by United Manufacturers Australia is available now for immediate purchase. Ideal for heavy-duty electrical wiring and industrial applications.
