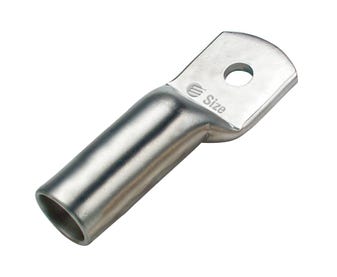

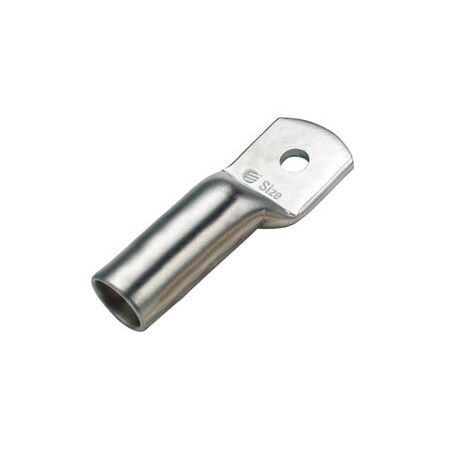

Copper Lug 240mm2 Cable 10mm Stud | High Conductivity | Extra Long Barrel | Weather Resistant by Cabac
Copper Lug 240mm2 Cable with 10mm Stud by Cabac, designed for outdoor use with high conductivity copper and extra long barrel for secure crimps and heatshrink sealing. Complies with AS4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 240mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL240LB-10
Alternatively Known As: Copper Cable Lug, Long Barrel Copper Lug, Outdoor Copper Lug, High Conductivity Cable Lug, Crimp Copper Lug
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.2 kg
Key Features
- Made from 99.95% pure high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel allows multiple crimps for high stress areas
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation by a qualified electrician or technician using standard hexagon crimping dies is recommended to ensure secure and compliant connections.
Applications
- High voltage terminations
- Drop outfuses
- External electrical connections requiring high conductivity and weather resistance
Standards & Compliance
- Complies with AS4325 Part 1 – Copper Conductors and Cable Lugs
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
- Corrosion resistant tin plating extends product life
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 240mm2 Cable 10mm Stud by Cabac is available for immediate purchase, ideal for outdoor electrical and high voltage applications.
