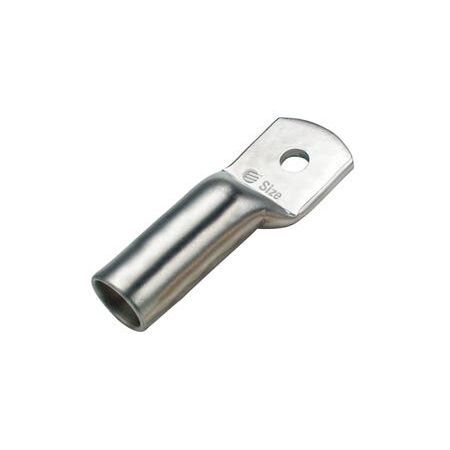

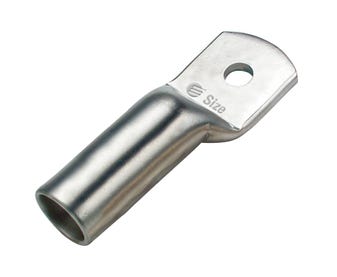

Copper Lug 240mm2 Cable 12mm Stud | High Conductivity | Extra Long Barrel | Tin Plated by Cabac
Copper Lug 240mm2 Cable with 12mm Stud by Cabac, designed for outdoor use with high conductivity copper and extra long barrel for secure crimps and airtight sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 240mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL240LB-12
Alternatively Known As: Copper Cable Lug 240mm2, Long Barrel Copper Lug, Outdoor Copper Lug 12mm Stud, High Conductivity Copper Lug
Technical Specifications
- Nominal Conductor: 240 mm²
- ID Size: 21.2 mm
- Stud Size: 12 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155 °C
- Dimensions (H x L x W): 12mm x 240mm x 21mm
- Weight: 0.5 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel allows more crimps and heatshrink sealing for airtight seal
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
- Tooling interchangeable with CABAC, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections.
Applications
- High voltage terminations
- Drop outfuses
- Electrical and power connectivity requiring secure cable lugs
- Outdoor electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable design reduces need for frequent replacements
- Tin plating enhances longevity reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 240mm2 Cable 12mm Stud by Cabac is available for immediate purchase, ideal for outdoor electrical and high voltage applications.
