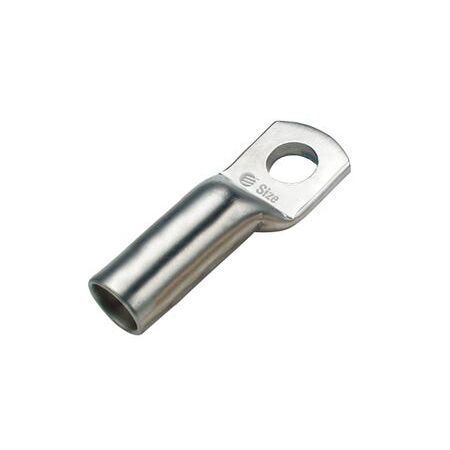

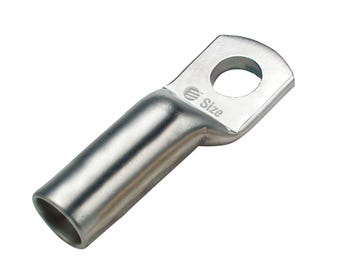

Copper Lug 25mm² 12mm Stud Long Barrel Heavy Duty Cabac
Cabac copper lug features 25mm² conductor size, 12mm stud hole, and crimp barrel, long heavy duty barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper cable lug, tubular copper lug, long barrel copper lug, tinned copper crimp lug
Technical Specifications
- Nominal Conductor Size: 25mm²
- Stud Hole Size: 12mm
- Conductor Stranding: 19/1.35mm
- Cable Entry Internal Diameter: 7.1mm
- Material: 99.95% pure high-conductivity annealed copper
- Surface Finish: 99.9% pure tin plating
- Tin Plating Thickness: 5–10 microns
- Electrical Conductivity: 99.7% IACS
- Tensile Strength: 200MPa
- Ductility: 40%
- Operating Temperature: -55°C to +155°C
- Crimping: Two overlapping crimps using HT130-C-25 or compatible standard hexagonal die
- Lug Type: Outdoor, sealed long barrel without inspection window
- Compliance: AS 4325.1
- Dimensions (H x L x W): 12mm x 62mm x 22mm
- Weight: 0.1 kg
Key Features
- Long barrel allows additional crimps for high-stress terminations
- Solder-sealed palm helps prevent water ingress
- Extended barrel provides additional length for heat-shrink sealing
- Suitable for external electrical use
- Manufactured from high-conductivity annealed copper
- Tin-plated surface assists corrosion resistance and reliable electrical contact
- Tooling is interchangeable with CABAC, Utilux and Burndy systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrician or electrical technician using the correct crimping tool and die. Ensure the lug is correctly sized for the conductor and tightened to the equipment manufacturer's specified torque.
Applications
- Terminating 25mm² copper conductors onto 12mm switchboard studs and busbars
- External electrical power connections
- High-stress cable terminations
- High-voltage termination assemblies
- Drop-out fuse connections
- Electrical installations requiring heat-shrink-sealed cable lugs
Standards & Compliance
- AS 4325.1 for compression connectors and cable lugs
Environmental Benefits
- Copper construction is highly recyclable at end of service life
- Durable tin-plated construction and sealed barrel can extend service life and reduce replacement waste
- High electrical conductivity supports efficient current transfer and reduced connection losses
Warranty Information
Covered by CABAC's lifetime-of-product warranty when used as specified by the manufacturer; warranty excludes misuse, neglect and incorrect installation. Australian Consumer Law rights also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors.
