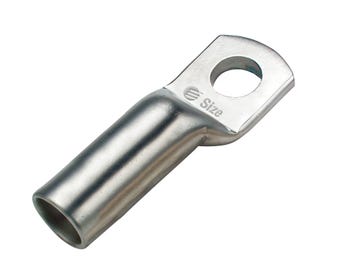

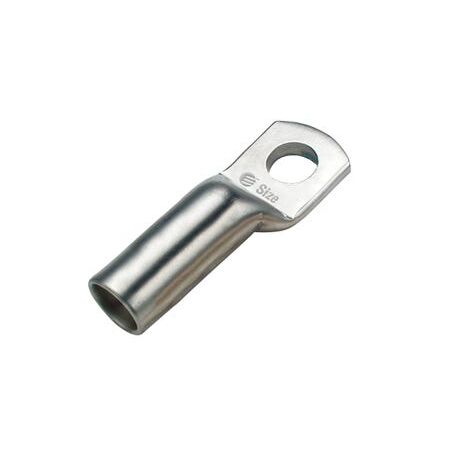

Copper Lug 25mm² Cable 10mm Stud | High Conductivity | Long Barrel Design | Water-Resistant by Cabac
Copper Lug 25mm2 Cable 10mm Stud by Cabac is a high conductivity, outdoor style long barrel lug designed for secure, water-resistant electrical connections in high stress areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 25mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL25LB-10
Alternatively Known As: Copper Cable Lug 25mm², 10mm Stud Copper Terminal Lug, Outdoor Copper Crimp Lug, Long Barrel Copper Lug
Technical Specifications
- Nominal Conductor Size: 25 mm²
- ID Size: 7.1 mm
- Stud Size: 10 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155 °C
- Tooling Compatibility: Interchangeable with CABAC, Utilux, and Burndy tooling
- Dimensions (H x L x W): 10mm x 70mm x 25mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel allows more crimps and heatshrink sealing
- Palms are solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
Professional Installation Requirements
- Professional installation by qualified electrical technicians is recommended to ensure proper crimping and sealing for optimal performance and safety.
Applications
- Electrical power connectivity for high voltage terminations
- Drop outfuses and other high stress electrical areas
- Outdoor electrical cable connections requiring water ingress protection
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from highly recyclable copper material
- Durable design reduces need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 25mm2 Cable 10mm Stud by Cabac is available for immediate purchase, ideal for electrical power connectivity applications requiring durable and water-resistant cable lugs.
